Details
Features & Benefits
- Audible tone from receiver can help prevent running out of oil during periods of heavy or unusual usage pattern, even if you have automatic delivery
- Monitor oil level from a comfortable place in your home – no need to head outside or to the basement
- Receiver and Transmitter have 150 ft. range
- Can work on tanks up to 10 ft. in height
- Installs in less than 10 minutes
- More accurate and reliable than a mechanical float gauge
- Replaceable lithium battery can last over 10 years
- Multiple receivers can be set up to receive from a single transmitter
- Multiple transmitter / receiver pairs can be colocated without interfering
Electrical Ratings
Communications Distance: Max of 150 ft
Power Supply
-
- Receiver: 110/120 Volts AC 60 Hz
- Transmitter: 3 Volt CR2430 Lithium Cell
Power Consumption
-
- Receiver: 2 Watts
Transmitter Battery Life: 10+ Years
Wireless Transmission: 915 MHz FM
Regulatory Compliance
-
- FCC Part 15
- UL 60335-1
Testing Laboratory: MET – OSHA Approved NRTL
Environmental
-
- Temperature: -4°F to +140°F (-20°C to +60°C)
- Humidity: 0 – 100% (Sealed airtight)
Dimensions
-
- Temperature: -4°F to +140°F (-20°C to +60°C)
- Humidity: 0 – 100% (Sealed airtight)
- Receiver: 2” x 2.2” x 1.4” (50 x 55 x 35mm)
- Transmitter: 5.4” x 2.8” x 1.6” (138 x 70 x 40mm)
Tank Adapter
-
- 2” NPT (Supplied with Product)
- 1-1/2” and 1-1/4” NPT Special Order
wdt_ID | Part Number | Description |
---|---|---|

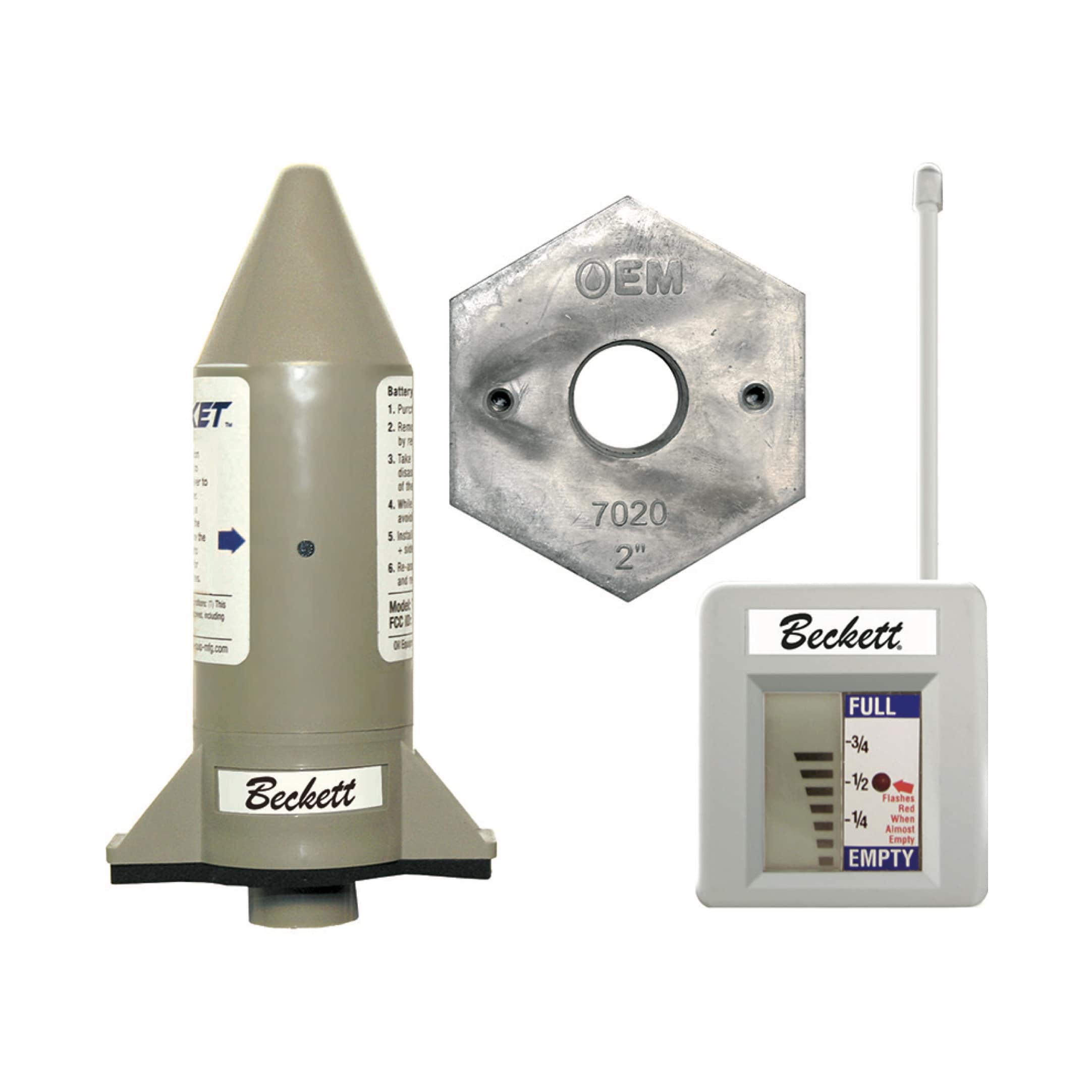

1 | 17000 | Rocket Fuel Monitor with 2" Adapter |
2 | 17012 | Rocket Adapter 1-1/4" NPT |
3 | 17015 | Rocket Adapter 1-1/2" |
4 | 17020 | Rocket Tank Adapter 2" NPT |
7 | 17030 | Rocket 2" Slip-in Euro Tank Adapter |
8 | 17050 | Rocket Wireless Receiver only |
9 | 17070 | Rocket Transmitter/Sensor only |

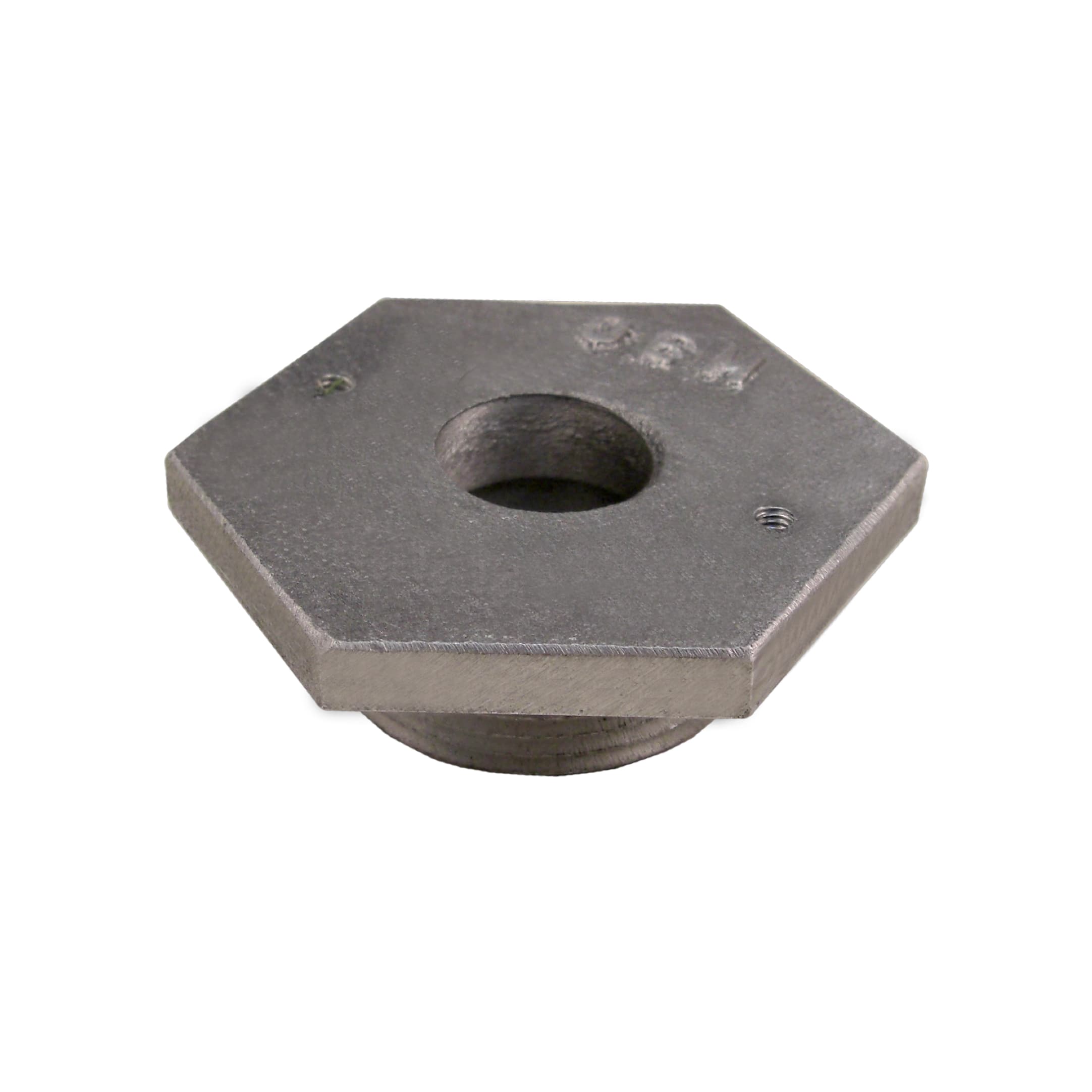

Rocket Adapter 1-1/4" NPT
17012

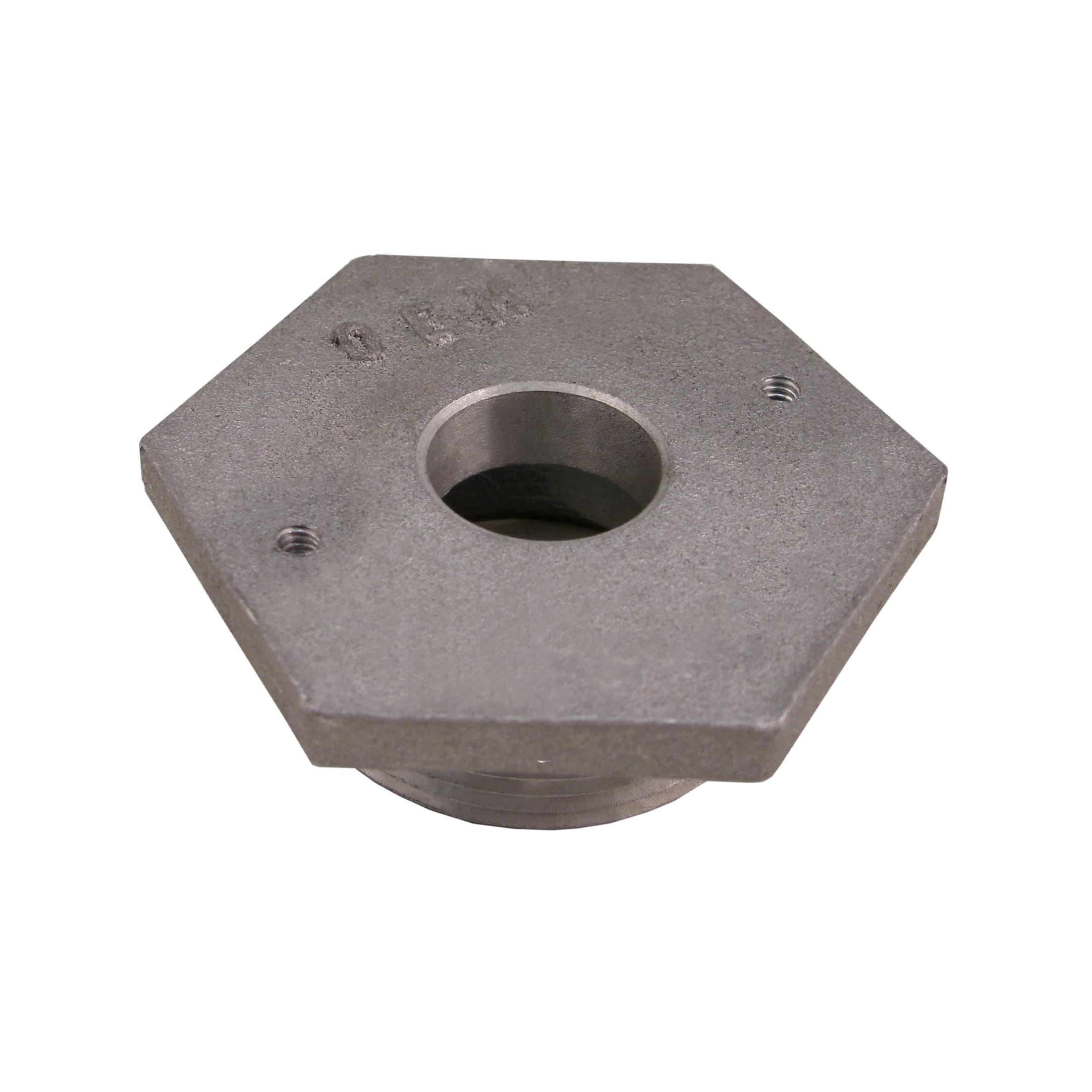

Rocket Adapter 1-1/2"
17015

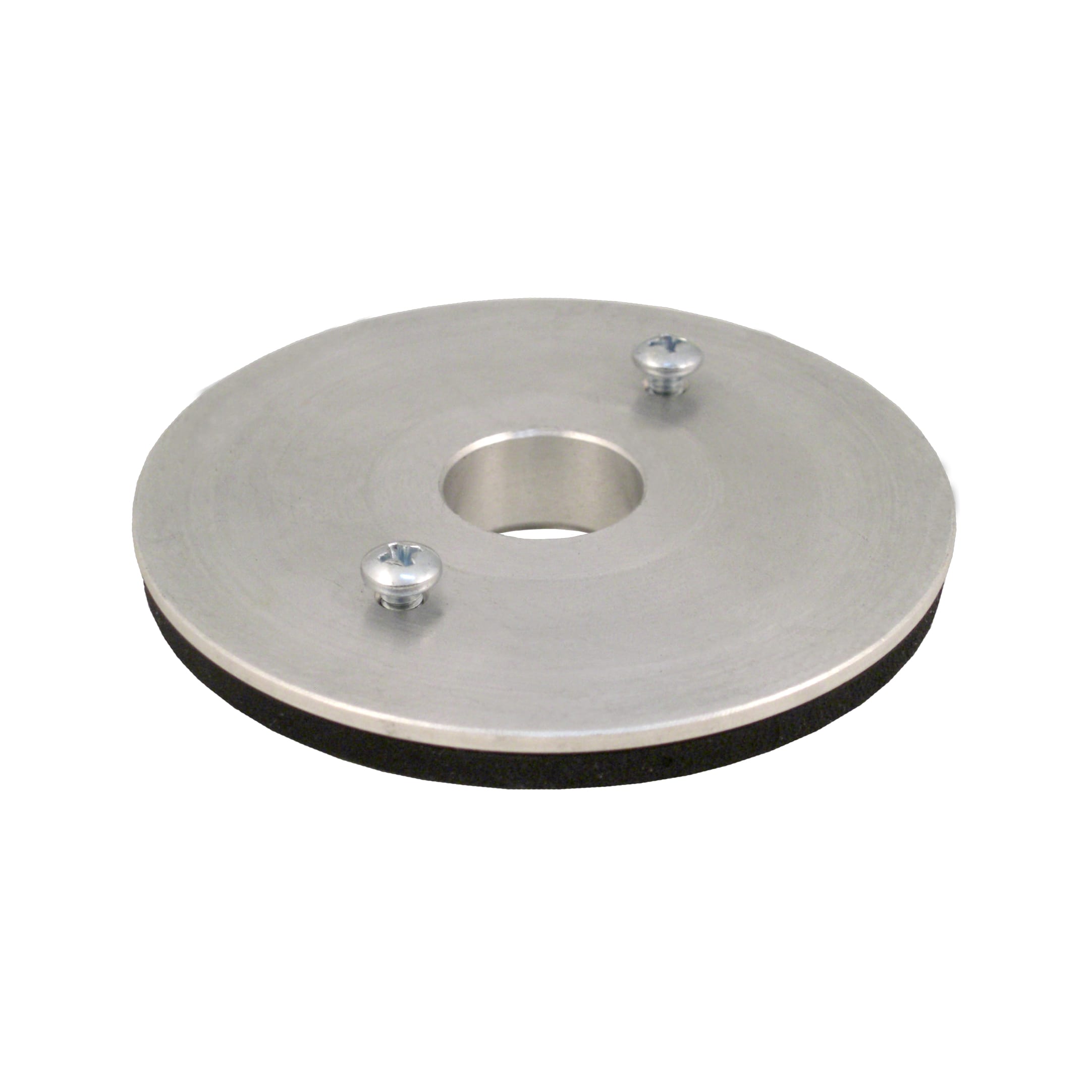

Rocket 2" Slip-In Euro Tank Adapter
17030

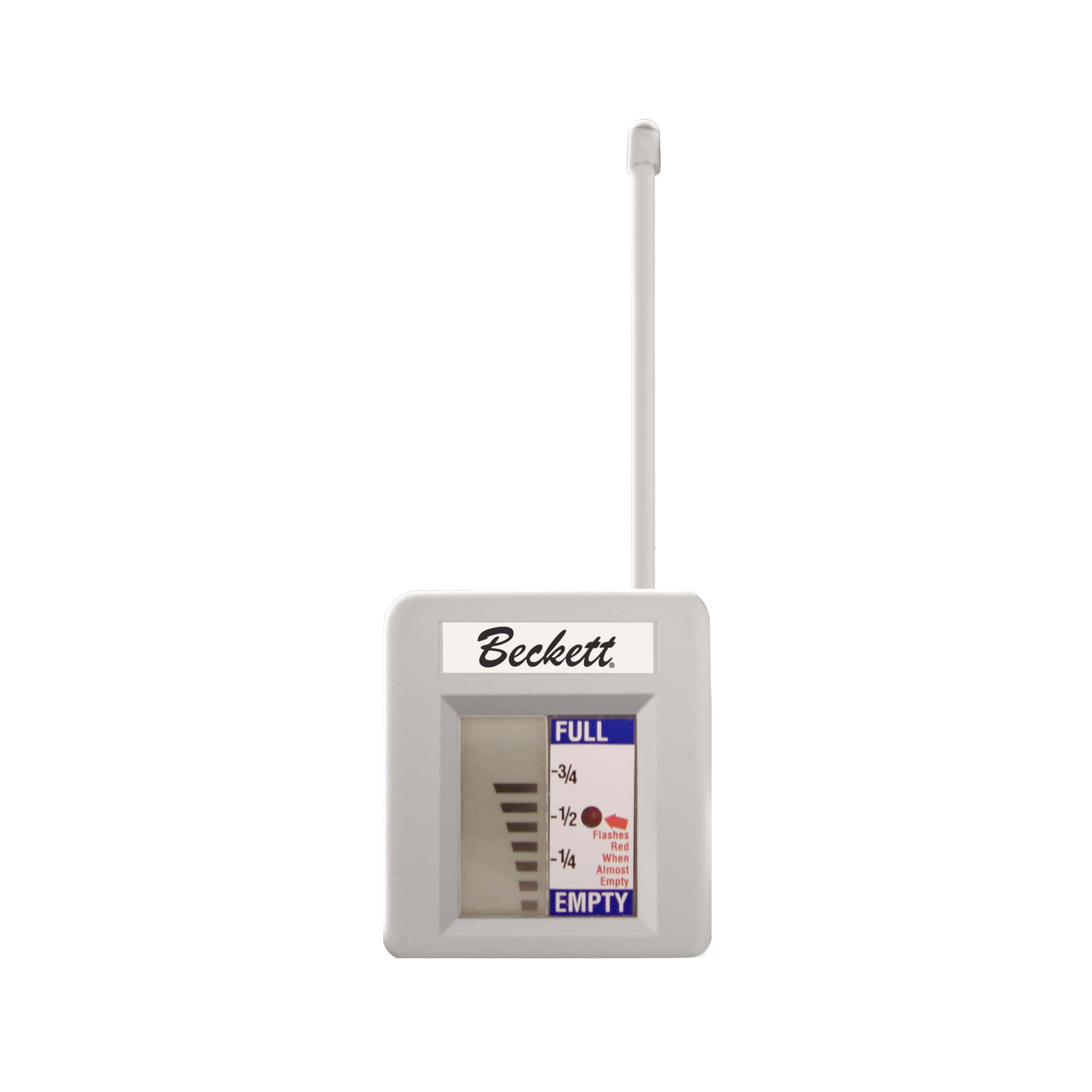

Rocket Wireless Receiver Only
17050

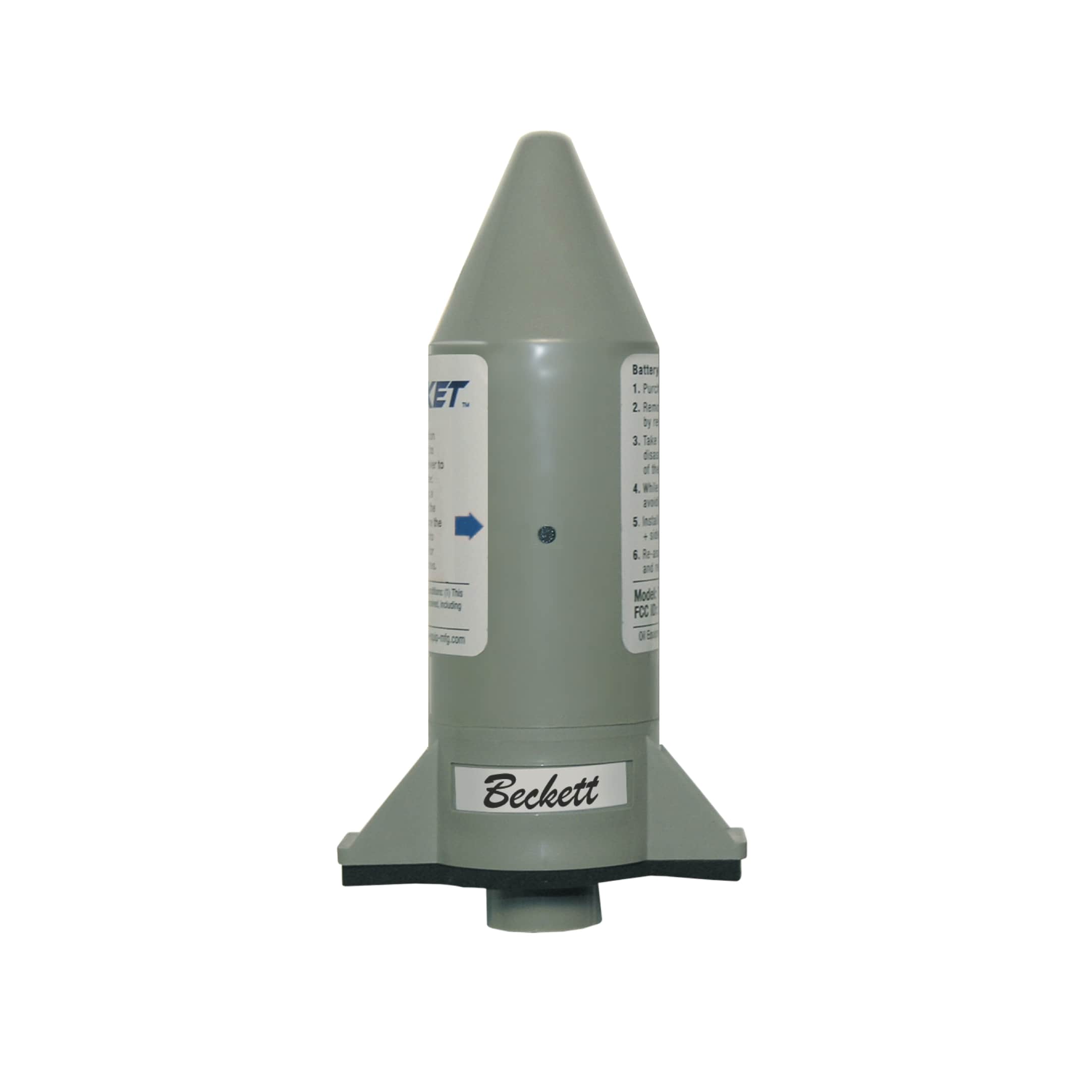

Rocket Transmitter/Sensor Only
17070

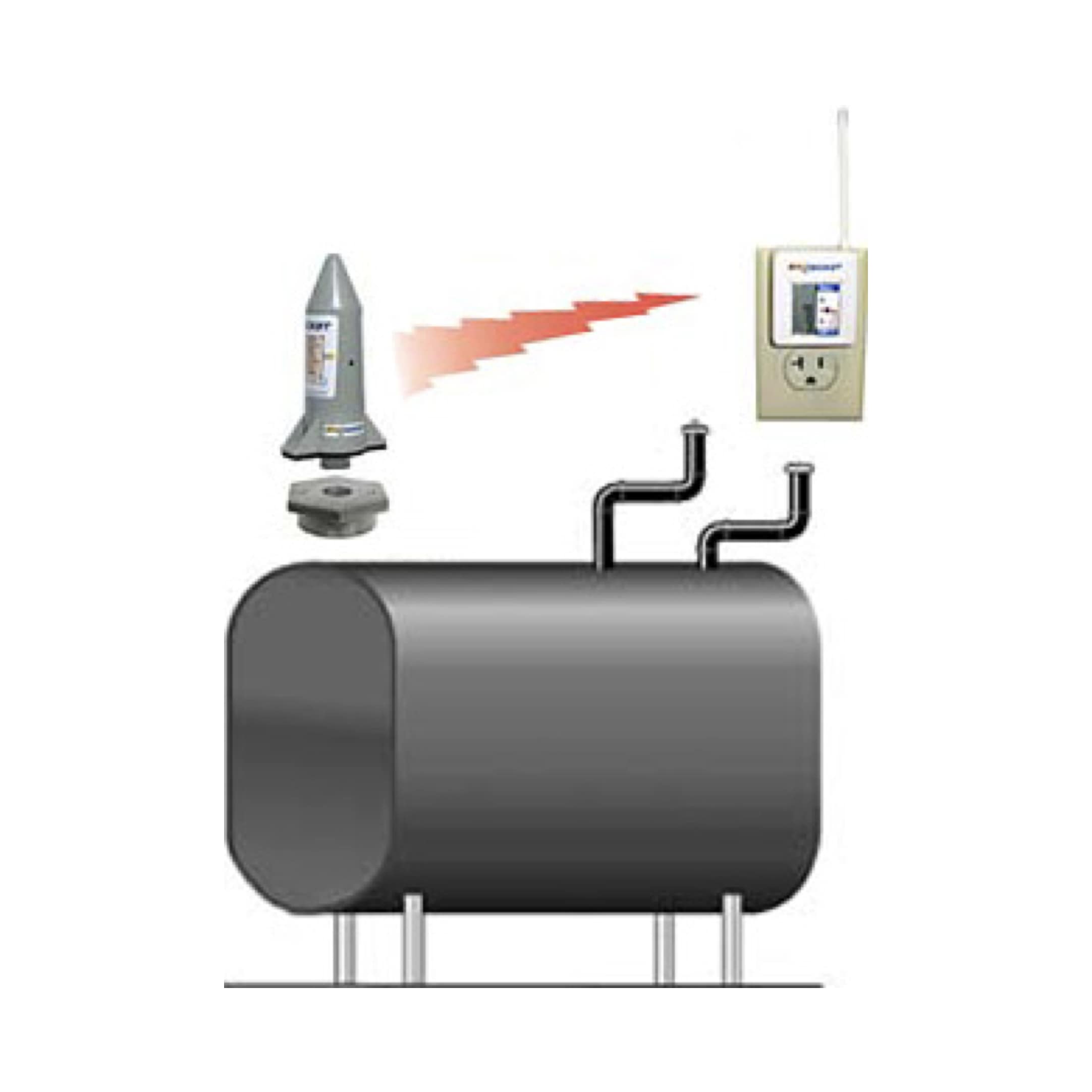

Rocket® Wireless Tank Gauge Operation
- The transmitter is mounted in an available opening in the tank and uses ultrasonic technology to measure the fuel level
- The Receiver plugs directly into a 120V outlet located in a convenient place in your home – usually the kitchen
- The LCD display on the Receiver displays the oil level as “bars”, where each bar represents approximately 10% of the tank’s capacity
- When the level goes below 20%, the fuel oil Nozzle “icon” appears in the LCD display, indicating that it is time to call for fuel delivery
- Note: if you have an “automatic delivery” contract with your oil dealer, you should wait until the level drops to about 10% before alerting the dealer to your oil level status
- When the oil level drops below 10% of the tank’s capacity, the red LED will begin flashing continuously and an audible signal will sound once every hour. Call your oil company immediately to schedule a delivery. These warning signals will continue until the first measurement is made following an oil delivery (this could take up to one hour after the delivery).
