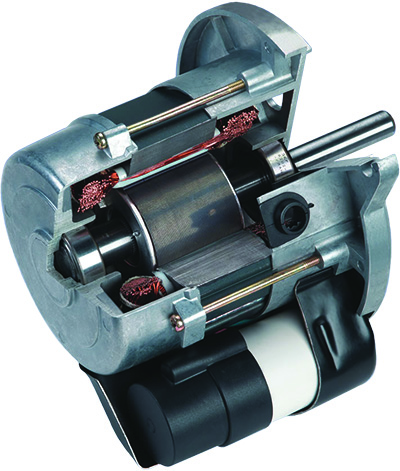

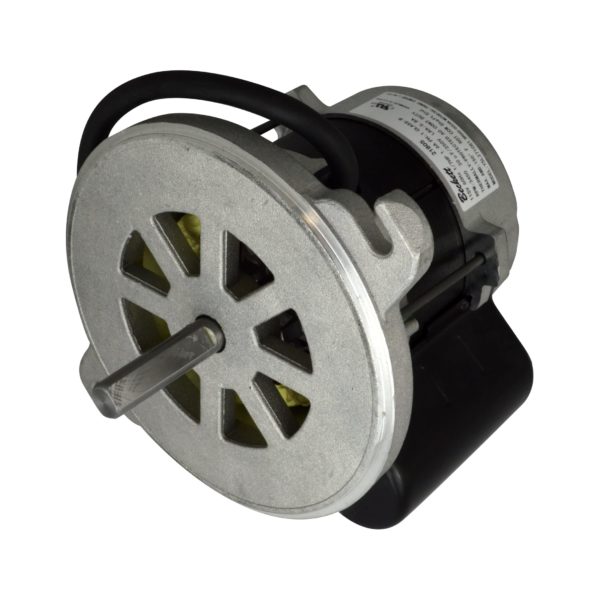

PSC Motor

Available for the Beckett AF/AFG Oil and Renewable Fuels Burner (0.40 to 3.00 GPH | AC Power) and CF375 Oil Burner (1.65 to 3.75 GPH | AC Power) lines, the 1/7 HP PSC motor offers over 20 years of high reliability in the field. In both 120VAC and 240VAC options, the motor provides combustion air and pressurized oil to the burner by driving one of Beckett’s Blower Wheels and and Beckett’s CleanCut Oil Pump.

Available PSC Part Numbers:

  • 21805U — 1/7hp, 120VAC, 60Hz
  • 22825U — 1/7hp, 220/240 VAC, 50/60Hz

See also: PMDC Motor

Details

Features

  • Permanent Split Capacitor: Lower amp draw, cooler operation, few failures
  • Ball Bearings: Longer life

Specifications

  • Electrical Input: 115V / 60Hz
  • Current Draw: 1.7 FLA
  • Speed: 3,450 rpm
  • Construction Type: PSC (Permanent Split Capacitor)
  • Bearing System: Ball bearing
  • Thermal Protector: Manual reset

Dimensions

  • Mounting frame: NEMA 48M
  • Lamination width: 3.7″
  • Body length: 4.56″
  • Body width: 3.93″
