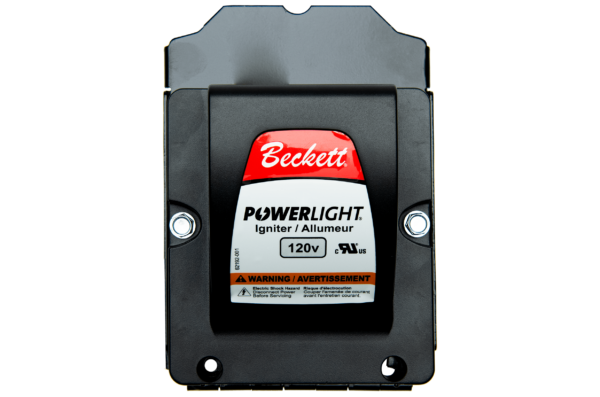

Details
Features
- UL recognized in the US and Canada
- 20 kV peak rating guarantees quick and efficient ignition
- Small size & lightweight
- A vacuum encapsulation process, using a synthetic resin, provides resistance to moisture, excellent heat dissipation and electrical insulation
- Case material is a high-temperature thermoplastic that provides high impact strength, scratch resistance, impenetrable to oil, and most chemicals
- Adapts to multiple baseplates – making it the most versatile unit on the market. It will also fit on many other vendors’ baseplates.
- Epoxy potting will not shrink or crack like tar-filled transformers
Technical Specifications
- Input Voltage: 120 VAC, 50-60 Hz, 35 VA
- Output Voltage: 6kV RMS, 20kV peak
- Output Current: 35 mA RMS
- Secondary Mid-point Ground
- Ambient Operating Temperature: -40°F (-40°C) to 150°F (66°C)
- Storage Temperature: -40°F (-40°C) to 150°F (66°C)
- Moisture: 5 to 95% Relative Humidity
Dimensions
![PowerLight-Oil-24-VDC-Igniters-dimensions-illustration-white](https://www.beckettcorp.com/wp-content/uploads/2022/09/PowerLight-Oil-24-VDC-Igniters-dimensions-illustration-white.png)
PowerLight Igniter Kits
Kit Part Number | Application |
51838U | Igniter Only (for all A & S models) |
51771U | Beckett A, AF, AFG, NX |
51805U | Beckett AFII (also 5260101U) |
51824U | Beckett S, SF, SMG, SR, SM CF500, CF800 |
51826U | Carlin 99, 100, 102, EZ |
51840U | Carlin 201, 301 |
51825U | Wayne M |
51827U | Wayne E |
51836U | Wayne HS (no base plate) |
PowerLight Igniter Baseplate Kits
Kit Part Number | Application |
51834U | Aero |
51830U | Beckett A Housing |
51831U | Beckett S Housing |
51832U | Carlin 99, 100, 102, EZ |
51841U | Carlin 201, 301 |
51833U | Wayne E |
51829U | Wayne M |
Downloads & Links
Warnings (prop65)
Warranty
Please note, all warranty claims must be initiated through an authorized Beckett supplier/distributor. Distribution policies will not allow Beckett to directly handle warranty claims with installers and/or consumers.
