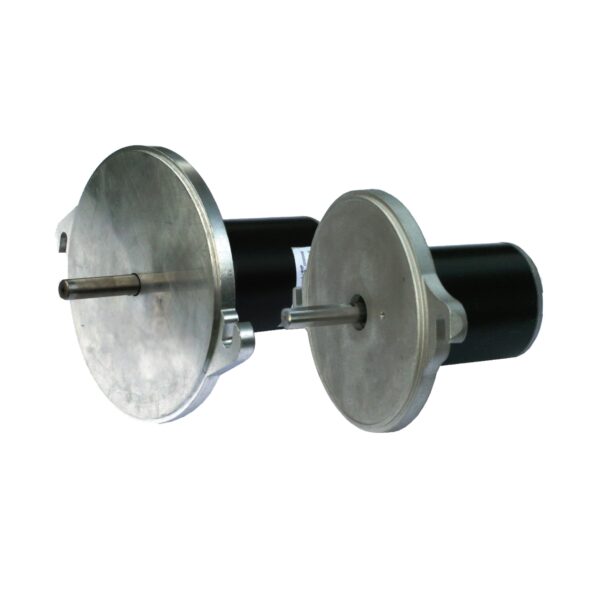

PMDC Motor

For the Beckett ADC Oil Burner (0.75 to 2.50 GPH | DC Power) and SDC Oil Burner (1.75 to 5.50 GPH | DC Power) lines, the PMDC motor has been designed for indoor and outdoor environments for light commercial and specialty applications. In both 12VDC and 24VDC options, the motor provides combustion air and pressurized oil to the burner by driving one of Beckett’s Blower Wheels and Beckett’s CleanCut Oil Pump.

Available PMDC Part Numbers:

  • 22243U — 1/7hp, 13.5VDC
  •
22244U — 1/4hp, 13.5VDC
  • 21773U — 1/7hp, 27VDC

See also: PSC Motor

Details

The Beckett 1/7hp and 1/4hp motors are better than ever. These improved motors are used primarily for pressure washer applications. After 25 years of reliable service the Beckett motors have been refi ned in several ways. For both the 1/7hp & 1/4hp motors, the 5/16” shafts have been replaced by 1/2” shafts while the couplings and blower wheels have also been standardized. These along with other features will assure you the reliability and performance you have come to expect from Beckett Burners.



Features & Benefits

  • More robust 1/2” motor shaft now standard on DC products
  • Improved strain relief and seal
  • Improved cord set replaces 2-wire leads
  • Improved engagement to burner housing
  • Standardized couplings and blower wheels to reduce inventory

Dimensions

  • Mounting frame: NEMA 48M
  • Lamination width: 3.7″
  • Body length: 4.56″
  • Body width: 3.93″

Specifications
