Drop-In Fills
Description or Name
Part Number
Description or Name
Part Number
Description or Name
Part Number
Description or Name
Part Number
- Time saver, problem solver
- Positive whistle
- Easy to handle
- Use 2″ MPT adapter to fit your delivery nozzle (A style)
- Vacuum breaker available (B style)
Part No. | Description |
11500ALI20 | A20″ Drop In Fill Less Insert |
11500ALI48 | A48″ Drop In Fill Less Insert |
11500ALI69 | A69″ Drop In Fill Less Insert |
11500AWI20 | A20″ Drop In Fill w/TSF Insert |
11500AWI48 | A48″ Drop In Fill w/TSF Insert |
11500AWI69 | A69″ Drop In Fill w/TSF Insert |
11500AX20 | A20″ Drop In Fill w/SpeedFill Insert |
11500AX48 | A48″ Drop In Fill w/SpeedFill Insert |
11500AX69 | A69″ Drop In Fill w/SpeedFill Insert |

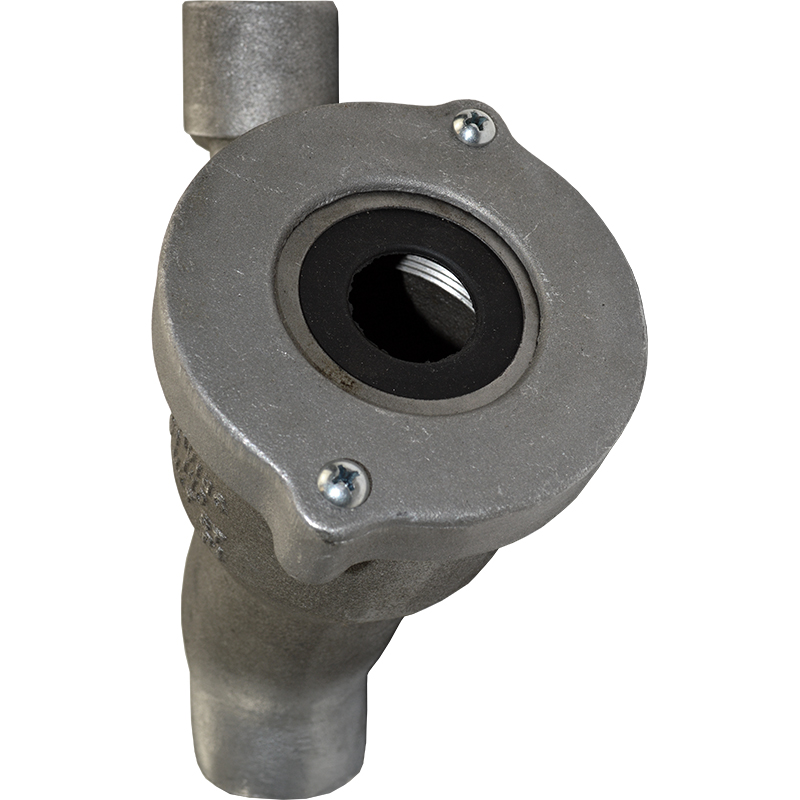

11500BLV20 | B20″ Drop In Fill tapped for Vacuum Breaker |
11500BLV48 | B48″ Drop In Fill tapped for Vacuum Breaker |
11500BLV69 | B69″ Drop In Fill tapped for Vacuum Breaker |
11500BWV20 | B20″ Drop In Fill w/Vacuum Breaker |
11500BWV48 | B48″ Drop In Fill w/Vacuum Breaker |
11500BWV69 | B69″ Drop In Fill w/Vacuum Breaker |
Drop-In Fill Parts

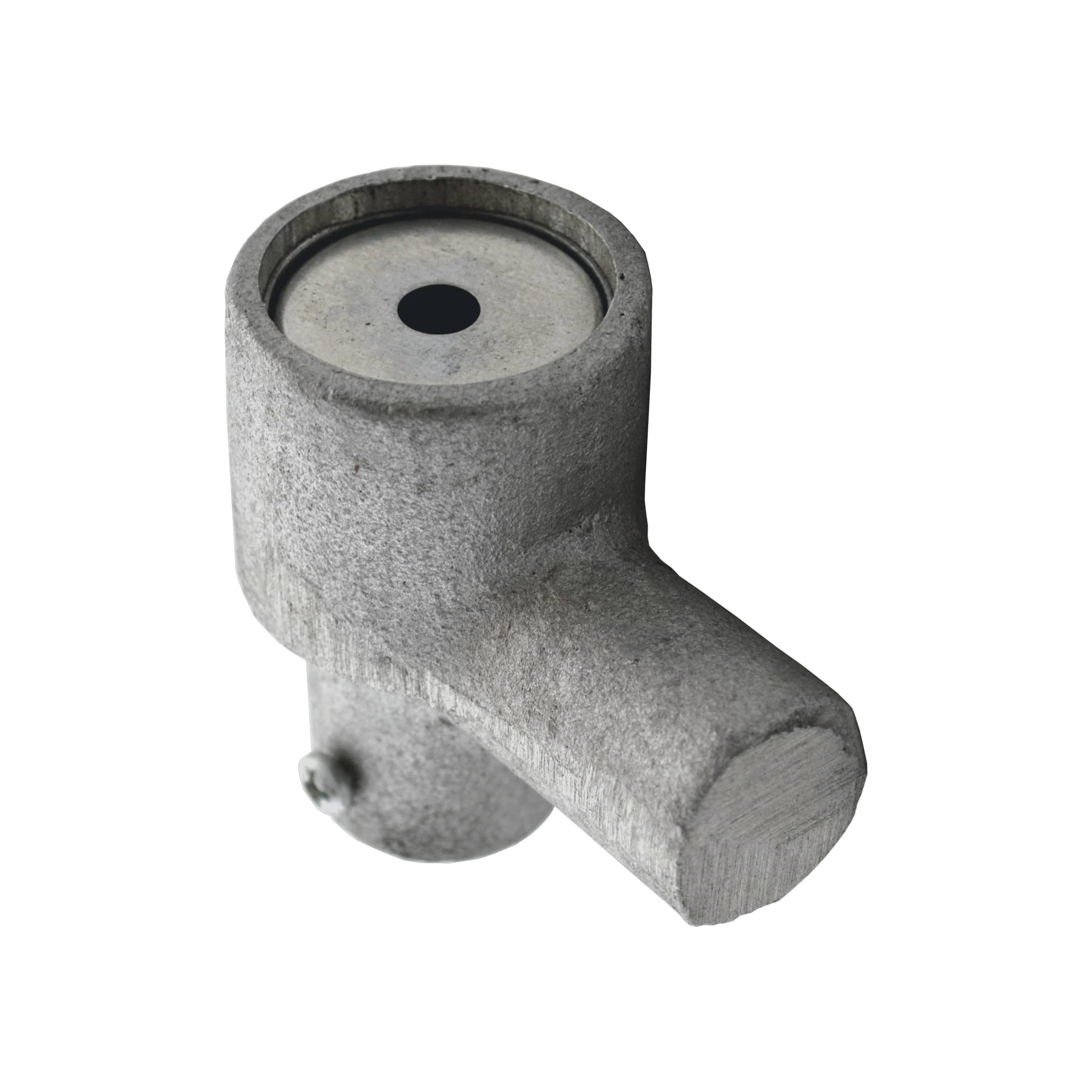

Drop In Fill | Whistle Head Only
11803

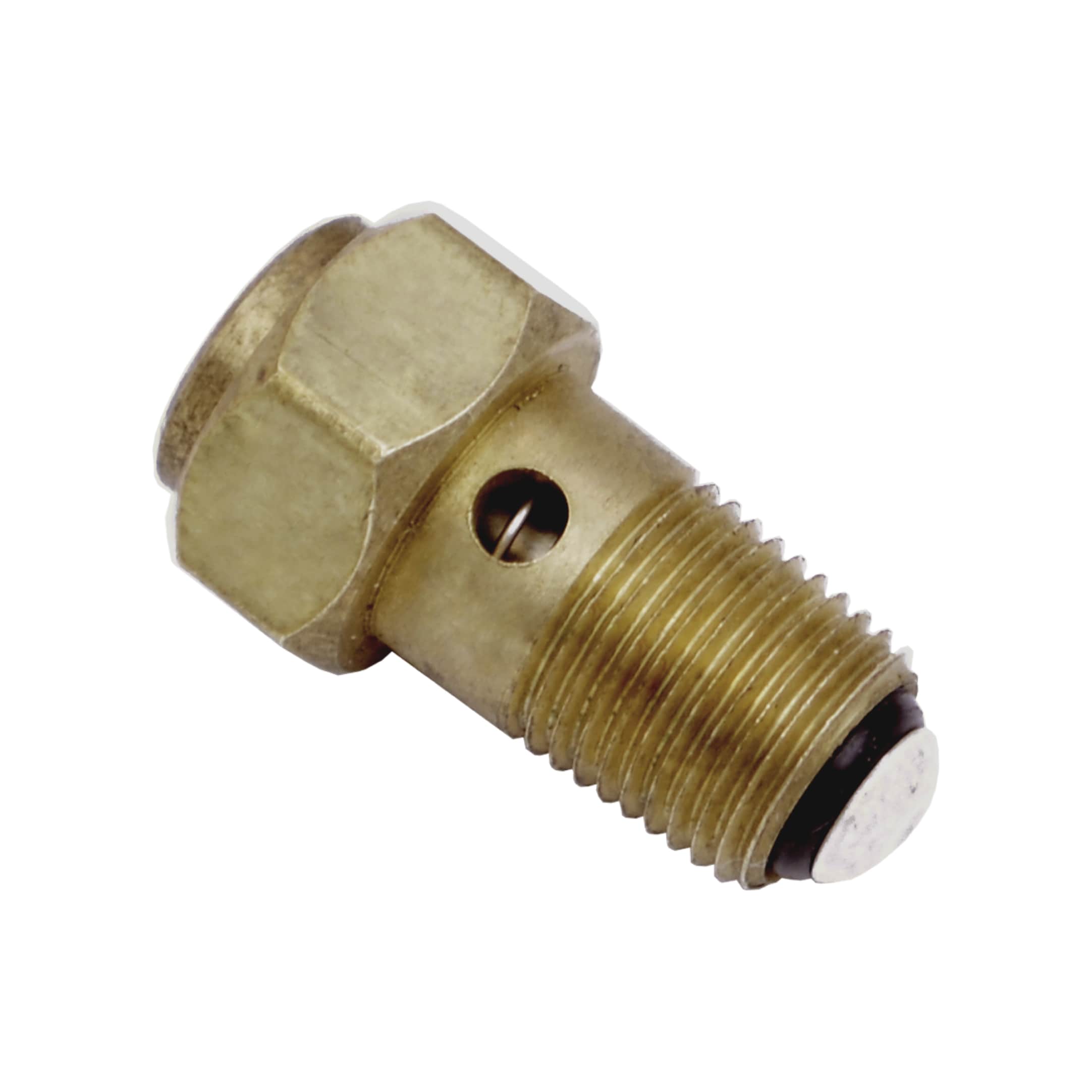

Vacuum Breaker for Underground 500Bs
11805

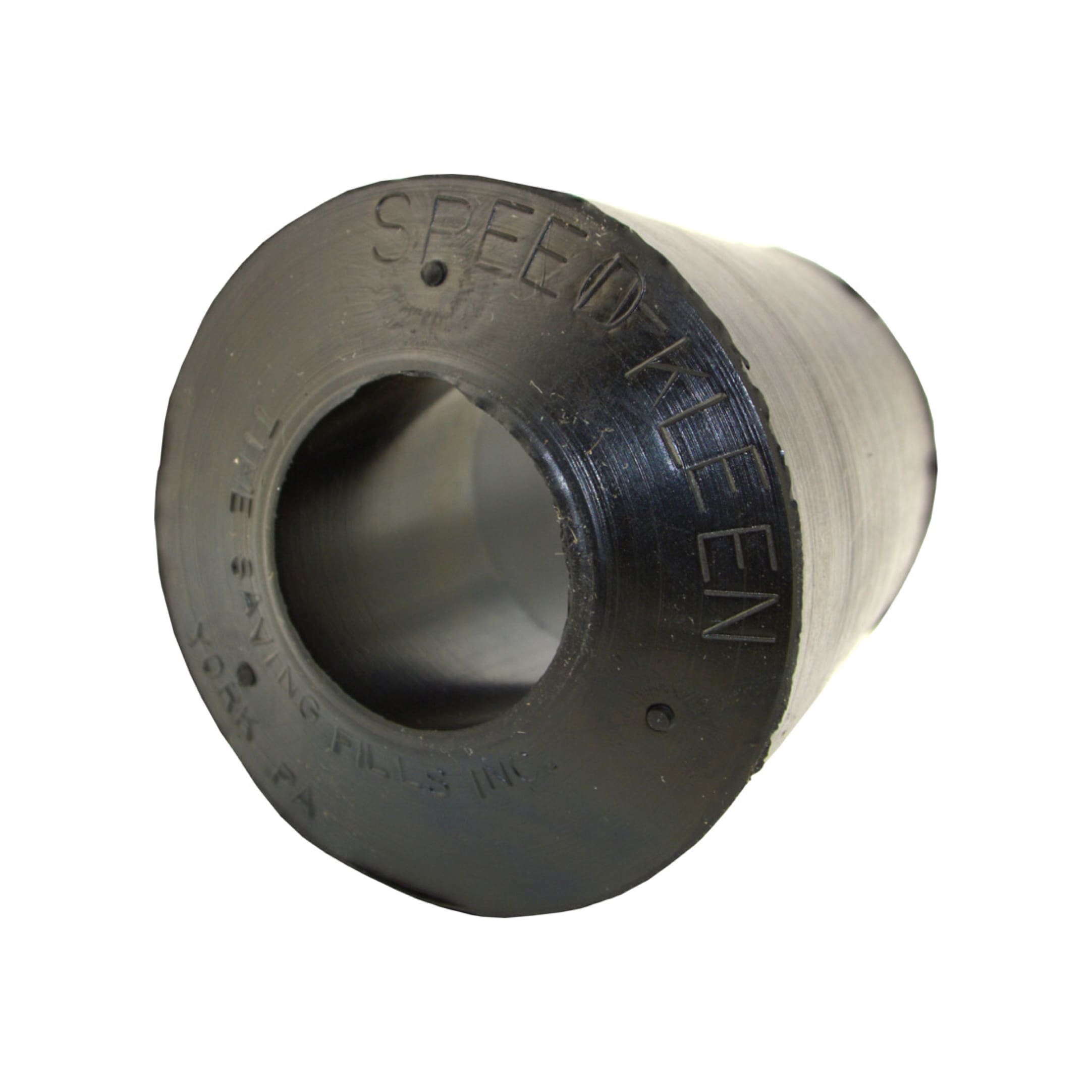

Small Rubber Plug (for use on drop in fills)
11712
Part No. | Description |
11712 | Small Rubber Plug (for use on drop in fills) |
11800 | 1-1/4″ Rubber Washer for Underground 500B’s only |
11801 | 1-1/2″ Rubber Washer for Underground 500B’s only |

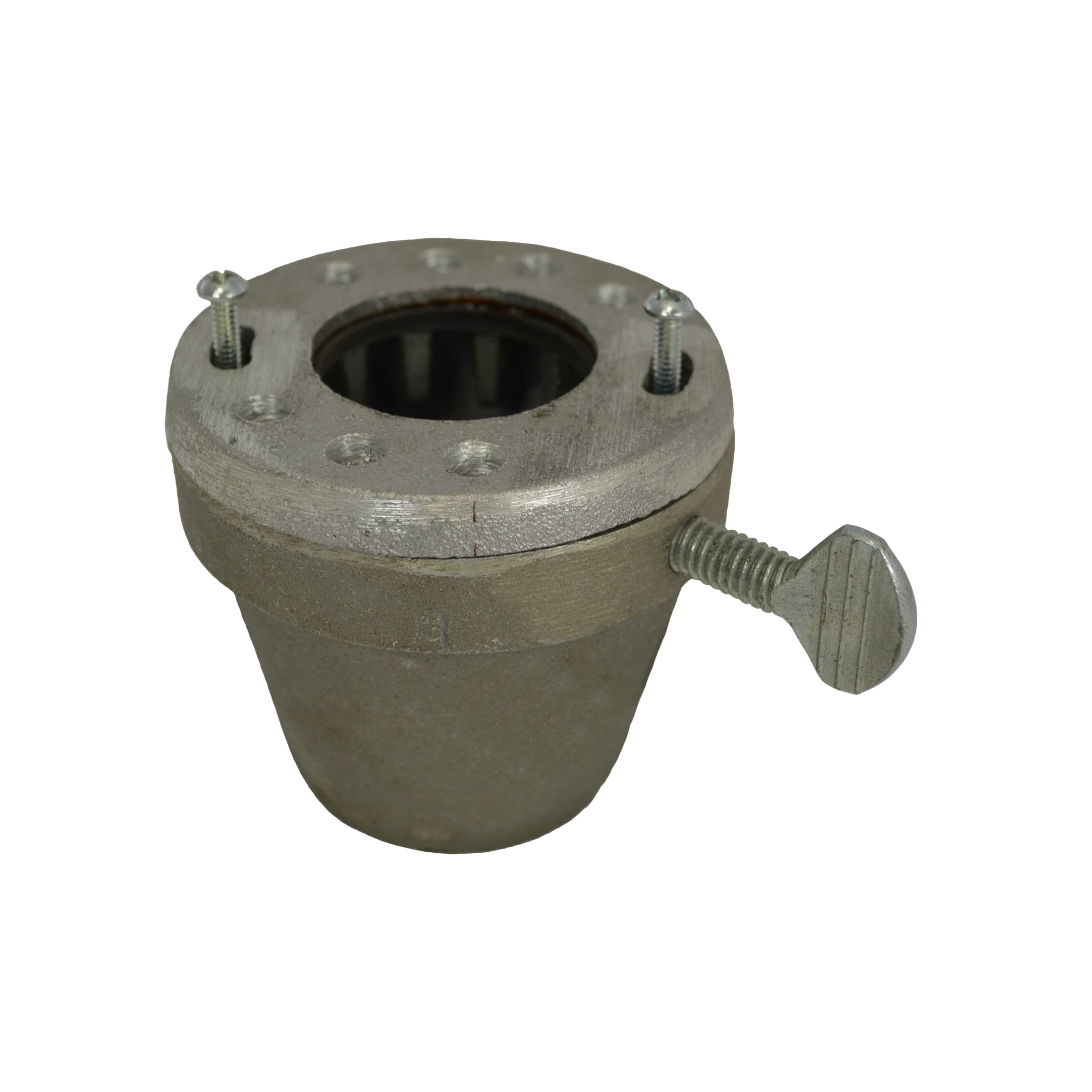

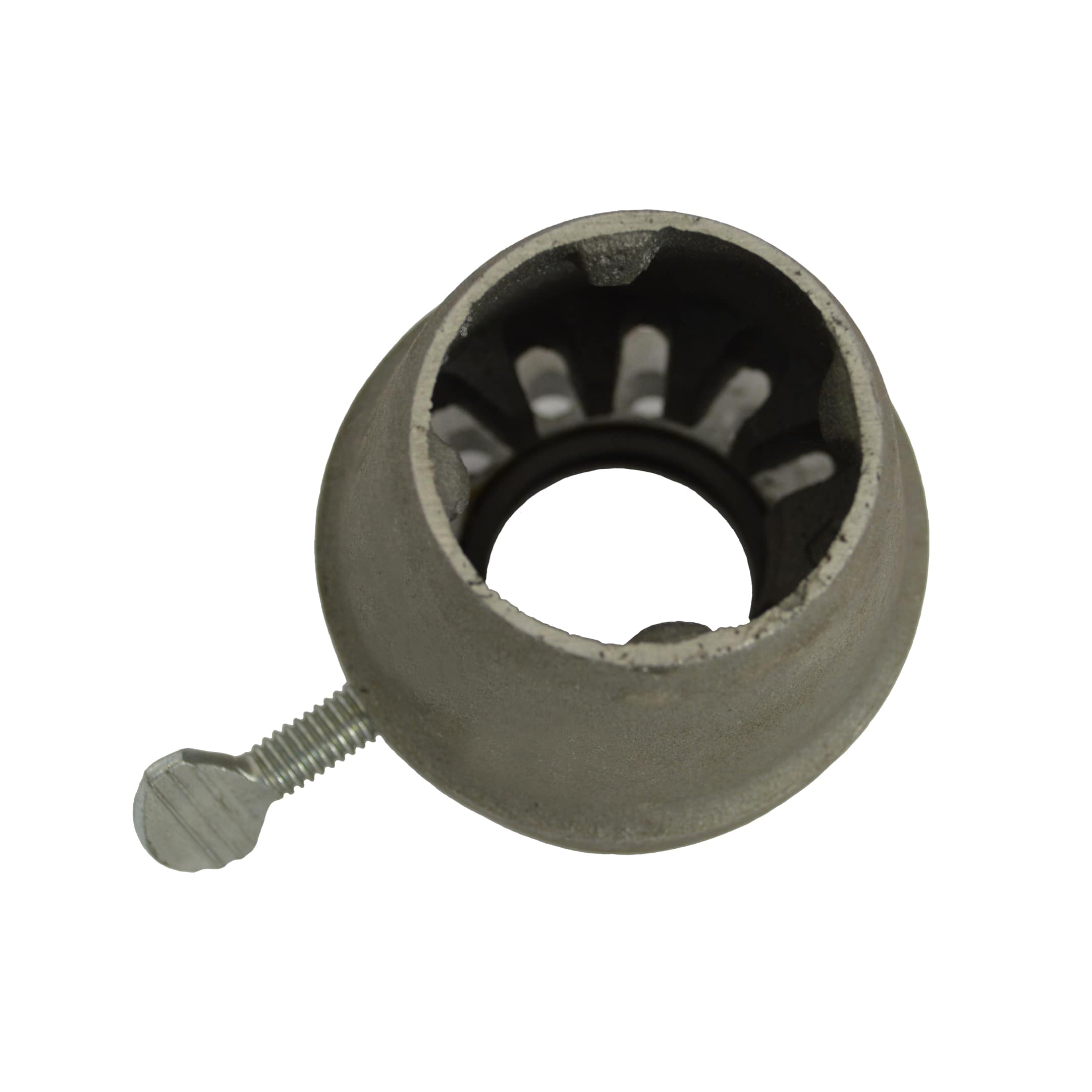

11802 | 2″ Aluminum Venting Head Assembly |
11803 | Whistle Head Only |
11804 | 48″ Whistle Tube Assembly Complete |
11805 | Vacuum Breaker for Underground 500B’s |
11806 | 69″ Whistle Tube Assembly Complete |
11807 | Thumb Screw for Venting Head |
11808 | Aluminum Shoe for Vent Head |
11809 | Rubber Gasket for Vent Head (4/Pk) |
11811 | Self Tap Screws for Whistle Head (2/Pk) |
11812 | Whistle Tube Nut for Underground Fill |
11813 | Packing for Whistle Tube Nut (5/Pk) |
11814 | 1/8″ MPT Plug |
11820 | 20″ Whistle Tube Assembly Complete |
Nozzle Connectors, Spouts, Nozzle Tube Parts, O-Rings & Miscellaneous
Description or Name
Part Number
Description or Name
11102
Description or Name
11102
Description or Name
11102

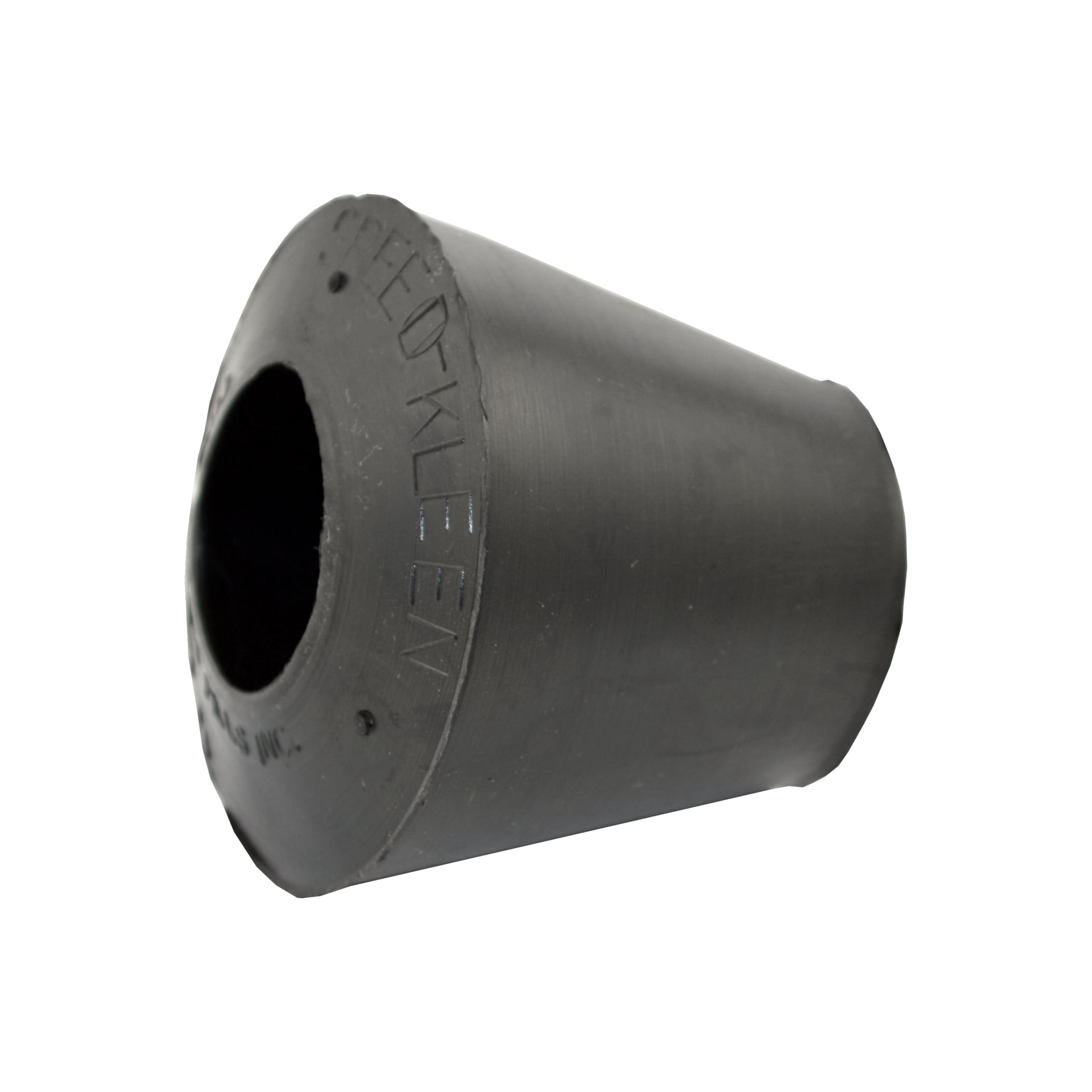

Large Rubber Plug (for use on spouts)
11713

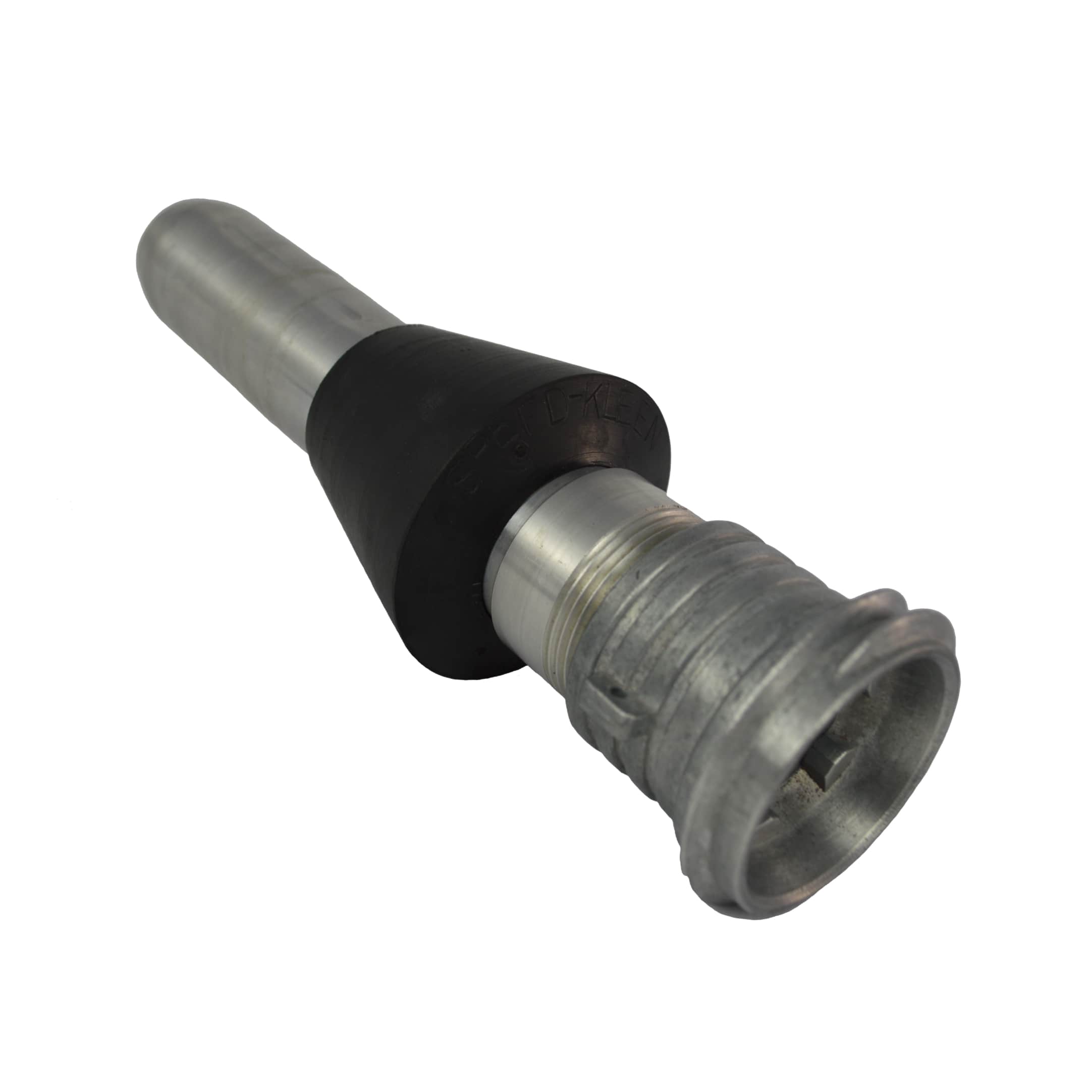

Large Rubber Plug (for use on spouts) with 7-1/4" Nozzle Spout with SpeedFill® Fitting
11713 with 1198X
Large Rubber Plug (for use on spouts) with 7-1/4" Nozzle Spout with SpeedFill® Fitting
11713 with 1198X
1-1/4" MPT Time Saving Fills® Long Nozzle Connectors (6" and 7-1/4")
11100 with 11101

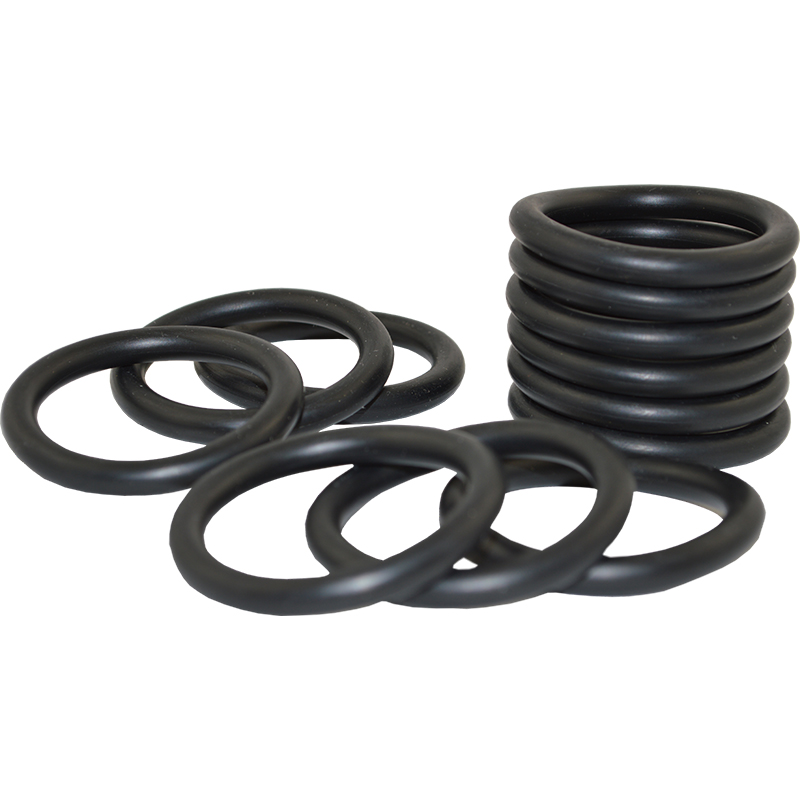

O-Rings
11700 and 11700X
Part No. | Description |
1199X125 | 1-1/4″ MPT SpeedFill® Brass Nozzle Connector |
1199X150 | 1-1/2″ MPT SpeedFill® Brass Nozzle Connector |
1199X150M | 2″ – 16TPI SpeedFill® Brass Nozzle Connector |
11100 | 1-1/4″ MPT Time Saving Fills® 6″ Long Nozzle Connector |
11101 | 1-1/4″ MPT Time Saving Fills® 7-1/4″ Long Nozzle Connector |
11101P | 1-1/2″ MPT Philly Nozzle Connector |
11101F | 1-1/4″ MPT Fill Fare Nozzle Connector |
1198X | 7-1/4″ Nozzle Spout with SpeedFill® Fitting |
11713 | Large Rubber Plug (for use on spouts) |
11700X | O-Rings for 1199X Nozzle Connector 3/Pk |
11700 | O-Rings for Time Saving Fills® Nozzle Tubes 12/Pk |
Downloads & Links
Product Sheets
Warnings (prop65)
Warranty
Please note, all warranty claims must be initiated through an authorized Beckett supplier/distributor. Distribution policies will not allow Beckett to directly handle warranty claims with installers and/or consumers.
