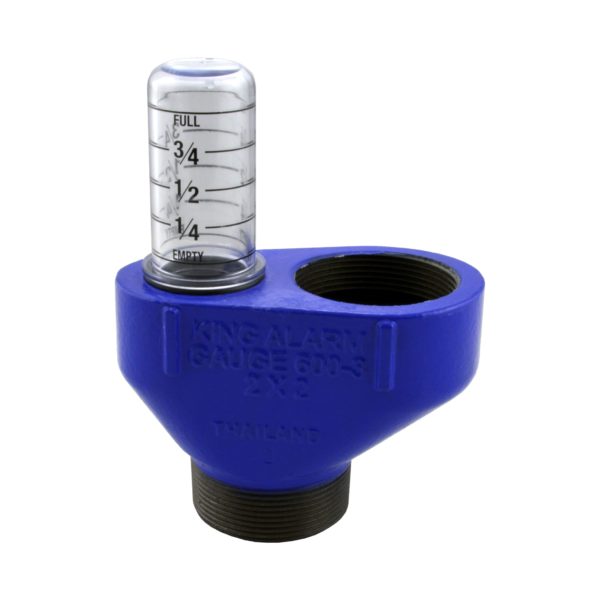

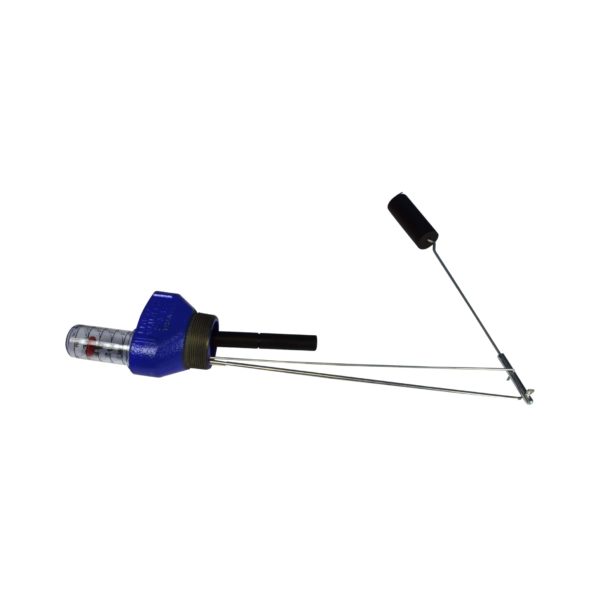

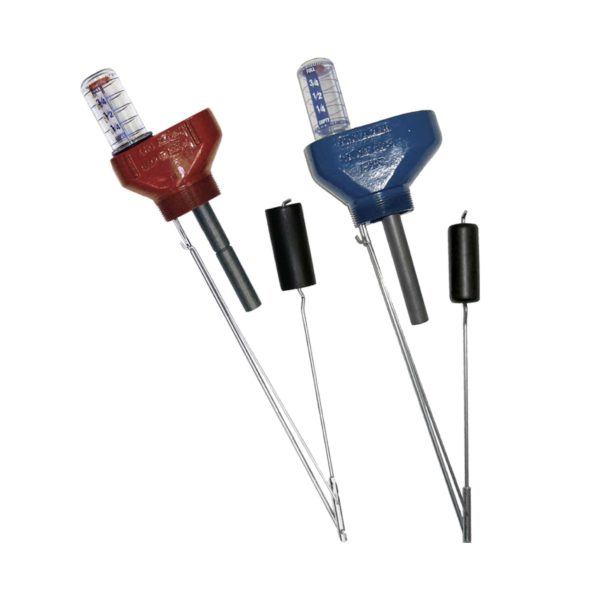

King® Combination Fill Alarm and Tank Gauge

Combining the functionality of a fill alarm and tank gauge, King® Combination Fill Alarm and Gauges are available in custom lengths to fit vertical, horizontal, and custom tank applications.

  • One-piece Nitrophyl® float is impervious to petroleum products
  • Tangle-free “solid link” hinge withstands rough handling
  • Durable castiron with blue powder coat finish
  • Large, easy-to-read, break resistant, plastic vial includes UV inhibitors
  • Vial is double sealed with o-rings.

Additional Information

Beckett  King® Gauges are available to fit tanks with diameters up to 72″.

All Beckett King® combination alarms/gauges are available in configurations compatible with Scully Signal Corp’s Scul-Tel1 and Intelli-Tank1 products. To order, append Beckett part numbers with “-SC”.

All Beckett King® Fill Alarms & Combinations now only available in a standard blue finish.

1 Intelli-Tank® and Scul-Tel® are trademarks of Scully Signal Corporation.

    Combination Fill Alarm and Tank Gauge

    Gauges

    Part No. Tank Application Bottom MPT1 Top FPT1
    14522 Vertical (42-44″) 1-1/2” 1-1/4”
    14523 Vertical (42-44″) 2″ 1-1/4”
    14524 Vertical (42-44″) 1-1/2” 1-1/2”
    14525 Vertical (42-44″) 2″ 1-1/2”
    14526 Vertical (42-44″) 2″ 2″
    14529 Horizontal (26-27″) 1-1/2”  1-1/4”
    14530 Horizontal (26-27″) 2″ 1-1/4”
    14531 Horizontal (26-27″) 1-1/2” 1-1/2”
    14532 Horizontal (26-27″) 2″ 1-1/2”
    14533 Horizontal (26-27″) 2″ 2″

    1 MPT = Male Pipe Thread, FPT = Female Pipe Thread

    Special Combo Gauge Lengths – Up to 72″ Tank diameter

    Part No. Tank Application Bottom MPT1 Top FPT1
    14521C-X Custom  1-1/2”  1-1/4”
    14521A-X Custom  2″  1-1/4”
    14521D-X Custom  1-1/2”  1-1/2”
    14521B-X Custom  2″  1-1/2”
    14520-X Custom  2″  2″
    1 MPT = Male Pipe Thread, FPT = Female Pipe Thread

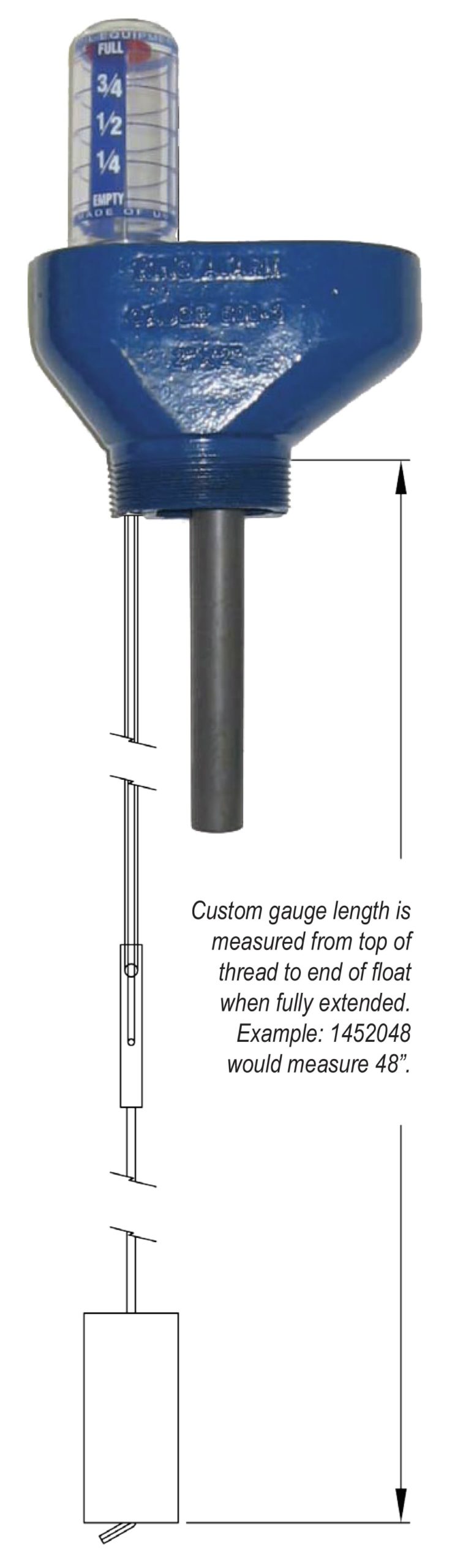

    NOTE: “X” is the desired length of gauge. EXAMPLE: 14521A-48 is a 2″ X 1-1/4” combo of length 48″.
