The Beckett GeniSys® Cadmium Sulfide (“CAD Cell”) Flame Detector Kit 7006U is used to detect the presence or absence of flame in residential and light commercial fuel oil burners. The 7006U CAD cell has a fast response time to detect flame failure and with a two-wire connection, easily connects to a primary safety control such as the GeniSys® 7505 120V Primary Oil Burner Control or the latest GeniSys® 7565 120V Oil Burner Advanced Primary Control. The 7006U CAD cell has a very high resistance in darkness and a very low resistance in the presence of light.
The cad cell is used in various indoor (typically a basement) and outdoor environments that are typical for heating oil burners including, but not limited to, furnaces, boilers, domestic hot water tanks, pressure washers, and cracksealers.
See also: Replacement Cad Cell Eyes | 596101BU
The Beckett CAD Cell Flame Detector is a photoconductive flame detector used with Beckett Control Model 7505 and Honeywell Models R4166, R4184, R7184, R8182, R8184, R8185, R8404, and R8991. It consists of a plug-in, light-sensitive cell and a socket which is wired to the control’s cad cell input terminals. The detector is installed inside the housing of the burner where the cell has a direct line of sight to the flame. The photocell flame detector is a light sensitive device. In the absence of light, a high resistance exists across the cad cell. In the presence of light, the cad cell resistance is low.

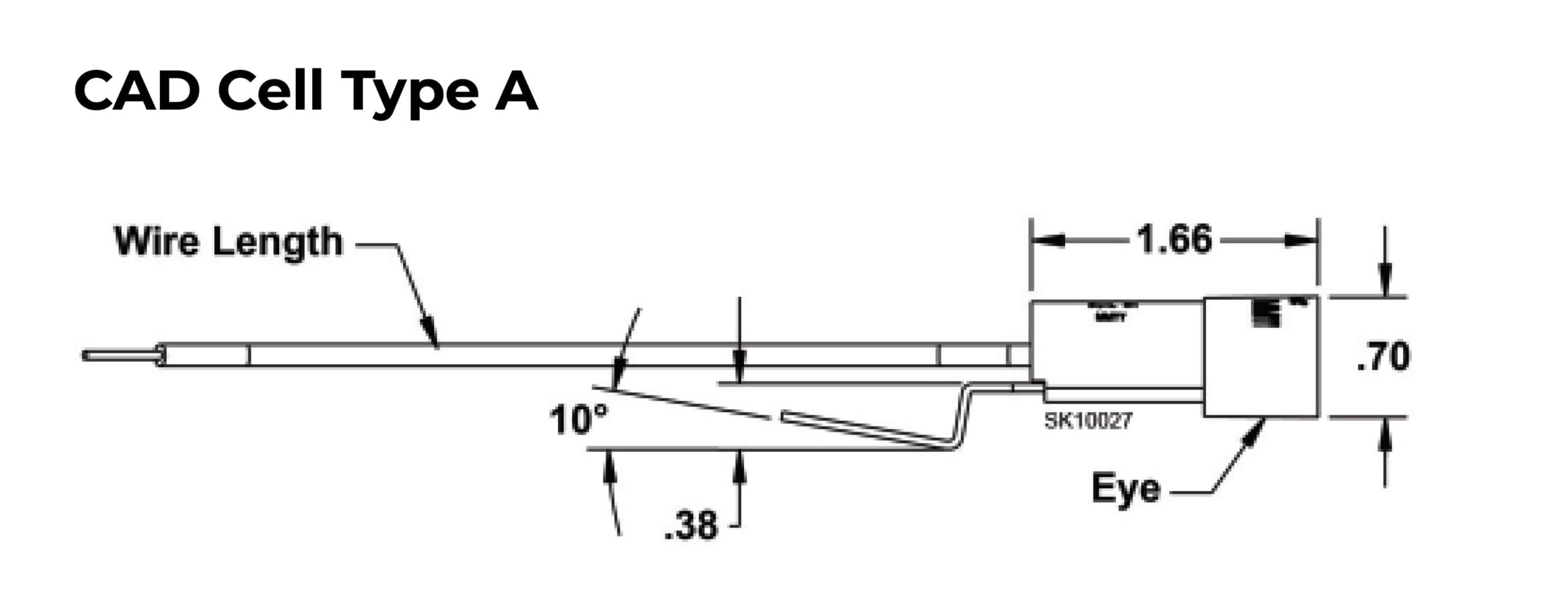

| Beckett Model No. | Type | Wire Length |
|---|---|---|
| 5963001 | A | 14.00” + 0.5” |
| 5963002 | A | 54.00” + 0.5” |
| 5963003 | B | 14.00” + 0.5” |
| 5963004 | A | 12.00” + 0.5” |
| 5963005 | A | 6.00” + 0.5” |
| 5963006 | A | 18.00” + 0.5” |
| Beckett Model No. | Beckett Eye | Honeywell Model |
|---|---|---|
| 5963001 | A | C554A 1687 |
| 5963002 | A | C554A 1893 |
| 5963003 | B | C554A 1844 |
| 5963004 | A | C554A 1919 |
| 5963005 | A | C554A 1935 |
| 5963006 | A | C554A 1943 |
*AFII Cad Cell only
| Detector Assembly Part No. | Bracket Part No. | Wire Assembly Part No. | CAD Cell Base | CAD Cell Eye Assembly |
|---|---|---|---|---|

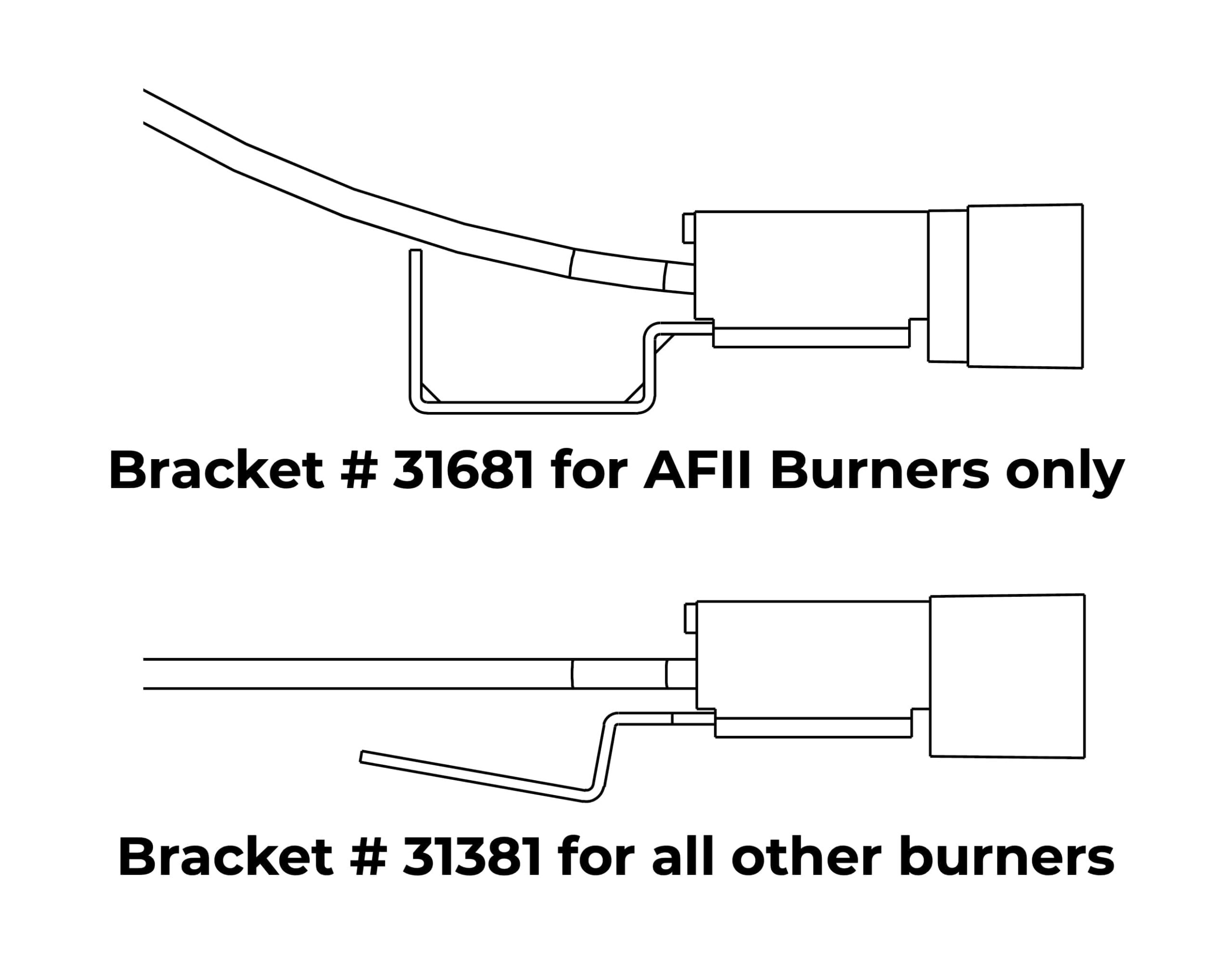

| 7006U | 31381 | 595801 | 3138001 | 596101 |
| 7135U | 595802 | |||
| 7316U* | 31681 | 595801 |
Please note, all warranty claims must be initiated through an authorized Beckett supplier/distributor. Distribution policies will not allow Beckett to directly handle warranty claims with installers and/or consumers.
