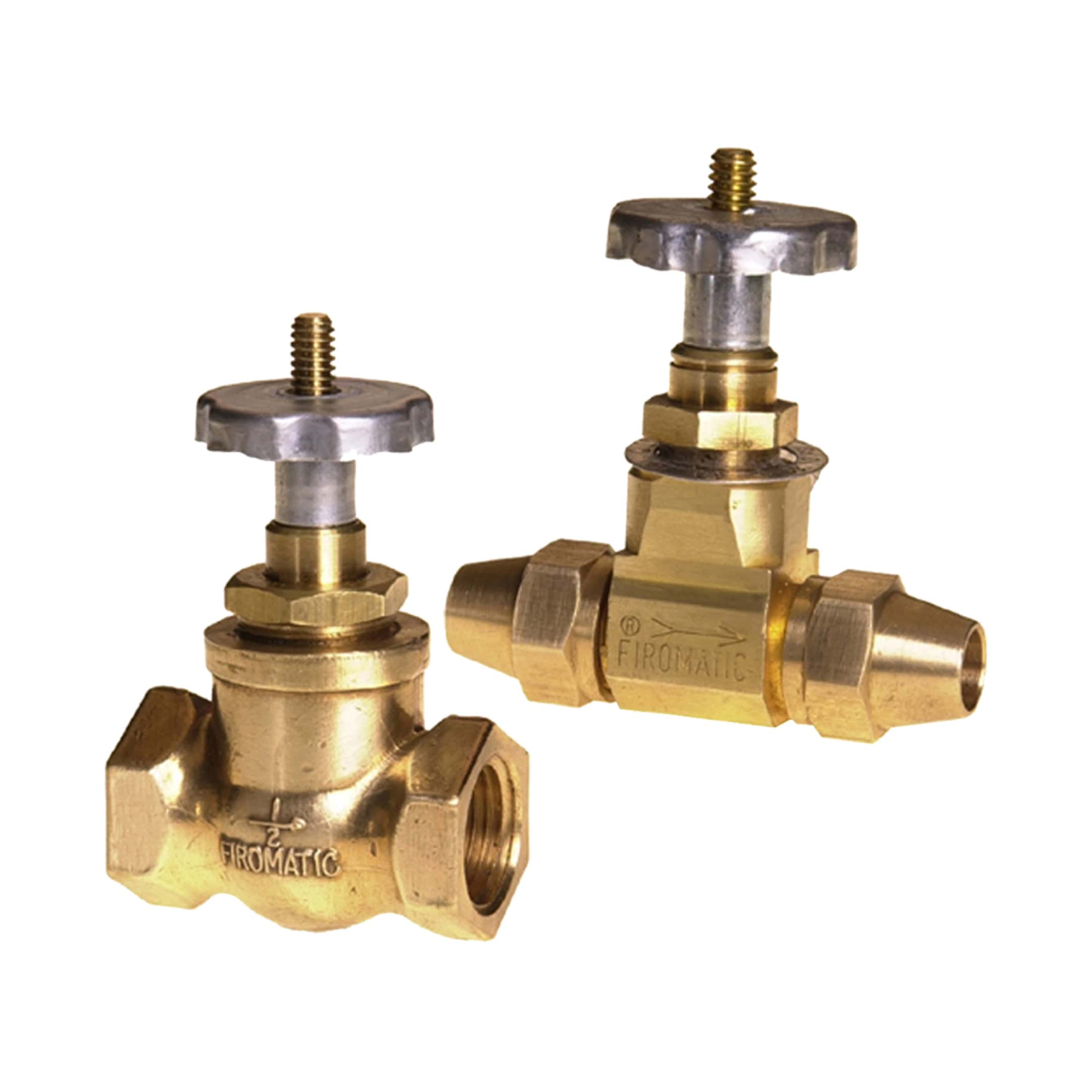

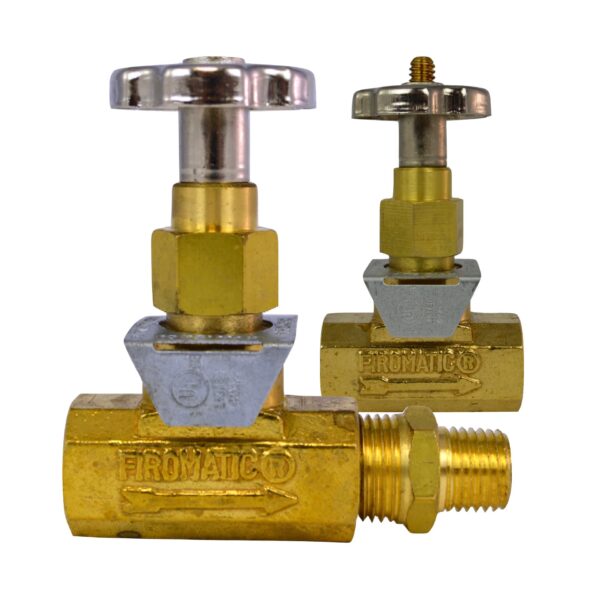

Firomatic® Fire Safety Fusible Inline Valves

Firomatic® brand Fire Safety Valves are designed to automatically close and shut off fuel flow in the event of a fire or other high temperature condition. Required in residential and commercial installations covered by codes NFPA 31 in the US and CSA. B139 Series: 19 in Canada. Other states, municipalities, and AHJ’s also require these valves for protection of the fuel supply system.

Featuring heavy-duty, high-quality brass construction, Beckett Firomatic® Fire Safety Fusible Inline Valves are designed for inline installation and are available with threaded NPT and flare ODF connections. The Underwriters Laboratories (UL) Listed valves are defined as “Fusible Link Valves” and have cUlus 842 Certification for both the US and Canada.

All valves are embossed with an arrow indicating direction of fuel flow. A tag indicates Model Number and contains a date code. The stem seal features a “double-seal” washer / O-ring design with a high temperature composite seat seal material. Approved for liquid heating fuels including renewable fuels to B100 / R100. Rated
for 10 PSI maximum inlet pressure. All models come with a 3-year limited warranty.

Available Firomatic® Fire Safety Fusible Tank Valves

UL Listed

wdt_ID Part Number Description Temperature
1 12810 3/8"FPT X 3/8" FPT 165°F
2 12811 3/8"FPT X 1/4"FPT 165°F
3 12830 1/2"FPT X 1/2"FPT 165°F
4 12840 3/8"ODF X 3/8"ODF 165°F
5 12850 1/2"ODF X 1/2"ODF 165°F
6 12815 3/8"FPT X 3/8" FPT 200°F
7 12818 3/8"FPT X 1/4"FPT 200°F
8 12819 1/2"FPT X 1/2"FPT 200°F
9 12820 3/8"ODF X 3/8"ODF 200°F
10 12821 1/2"ODF X 1/2"ODF 200°F

Non-UL Listed

wdt_ID Part Number Description Temperature
1 12112 3/4"FPT X 3/4" FPT 165°F
2 12113 1"FPT X 1"FPT 165°F

Replacement Handwheels

wdt_ID Part Number Description Temperature
1 12510U All Valves 3/8" - 3/4" - Packaged Each 165˚F
2 12510BU All Valves 3/8" - 3/4" - 25 Pack 165˚F
3 12511U All Valves 3/8" - 3/4" - Packaged Each 200˚F
4 12511BU All Valves 3/8" - 3/4" - 25 Pack 200˚F
5 12512 1" Inline Valve 165˚F
6 12513 1" Inline Valve 200˚F

Downloads & Links

Manuals & Product Sheets
New call-to-action
New call-to-action
New call-to-action

Warranty

Please note, all warranty claims must be initiated through an authorized Beckett supplier/distributor. Distribution policies will not allow Beckett to directly handle warranty claims with installers and/or consumers.

Click to view Limited Warranty for Beckett Products.

Click here to check if your part is still under warranty
