CG15 Gas Burner
560 to 1,500 MBH | AC Power

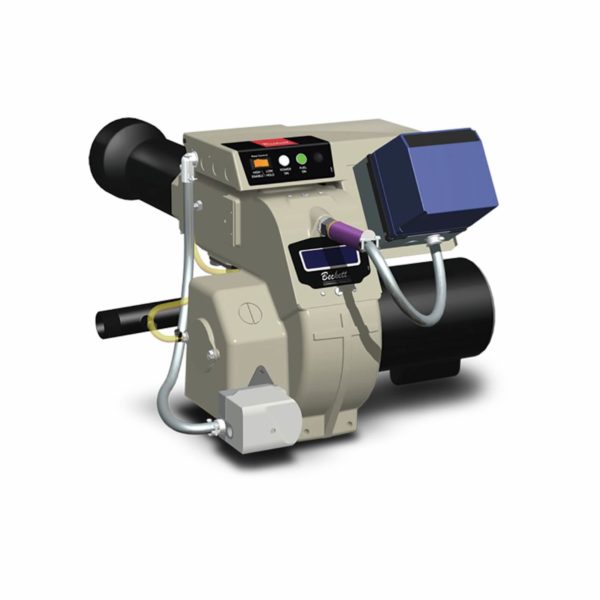

The Beckett CG15 gas burner design and technically advanced components meet increasing demand for improved performance in high-efficiency appliances in light commercial/industrial applications. Our CG15 utilizes a proven combustion technology and our chassis coupled with a welded insertion make a perfect match to your application.

Details

Additional Features

  • Linkage less air damper adjustment
  • Full modulation optional operation accepting 135 ohm, 4-20 mA or 0-10 VAC inputs with single linkage air to gas adjustment
  • UL/cUL & CSD-1 standard
  • Cast aluminum housing for robust construction and quiet operation
  • Direct spark ignition
  • Power On and Fuel On lights standard
  • Junction box with terminal strip for ease of wiring installation
  • Removal gas gun assembly for ease of service and adjustment
  • Right or left hand gas train connection
  • Burner mounted control panels available
  • Ventless gas trains standard for operation

    Combustion Head

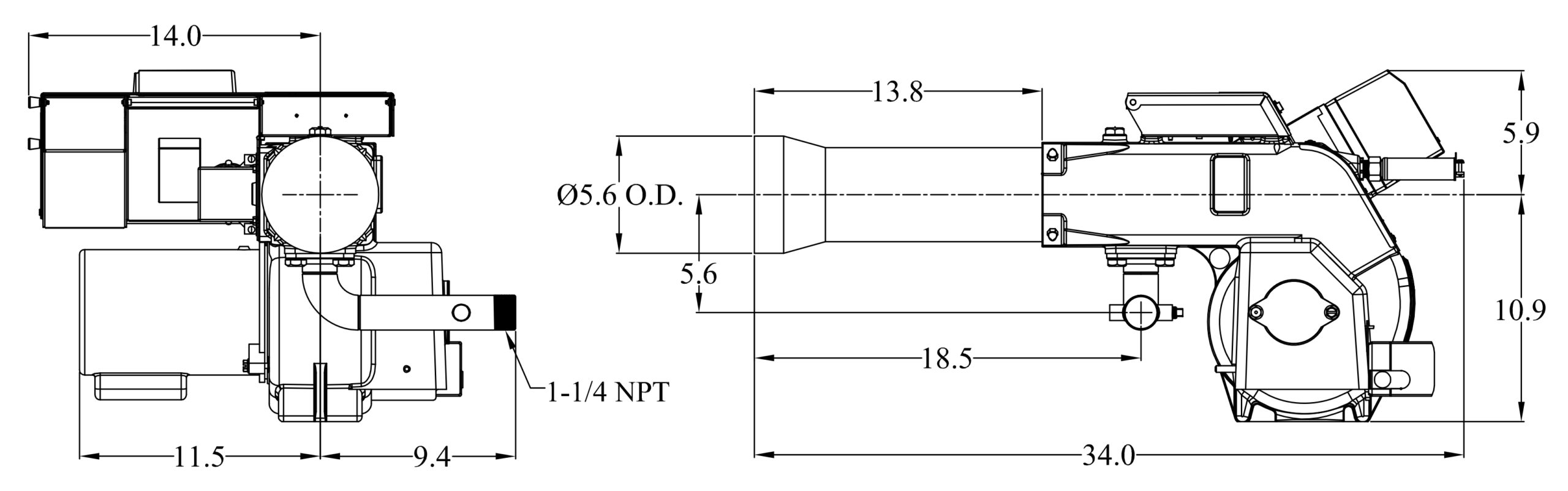

    Dimensions

    Combustion Chamber Dimensions

    Minimum Inside Dimensions (inches)
    Burner Model Width ‘W’ Height ‘H’ Length ‘L’ at Minimum H & W*** Burner Head Centerline to floor ‘A’
    CG15.1S 15 16 42 7
    CG15.2S 16 17 45 8
    CG15.3S 17 18 47 8
    CG15.4S 18 19 50 9

    Gas Train Assembly

    (Typical Gas Train, other configurations are available)

    Specifications

    Input Firing Range*

      • High-Fire (Maximum):
        • United States: 1,500 MBH  |  Canada: 1,370 MBH
      • High-Fire (Minimum):
        • United States: 800 MBH  |  Canada: 800 MBH
      • Low-Fire (Maximum):
        • United States: 560 MBH  |  Canada: 560 MBH
      • Low-Fire (Minimum):
        • United States: 350 MBH  |  Canada: 350 MBH

    Fuel

      • Natural Gas: 0.6 Specific Gravity Typ.
        Propane (LP):
        1.53 Specific Gravity Typ.

    Gas Train

      • Standard: UL Listed / CSD-1 configuration
      • Options: IRI, FM

    Gas Train Inlet Pressure

      • Minimum: 3.7” WC**
      • Maximum: 10 PSI

    Manifold to Furnace Pressure Drop

      • Highest High Fire: 3.7″ WC
      • Lowest High Fire: 2.7″ WC

    Firing Modes Available

      • Low Fire Start, High/Low, Modulation

    Standard Flame Safeguard

      • Low Fire Start: RM7897A
      • High / Low: RM7897C
      • Modulation: RM7897C

    Flame Detector

      • Standard: Flamerod
      • Optional: UV

    Airflow Proving Switch

      • Standard

    Gas Pressure Switches

      • Standard High and Low

    Ignition

      • Direct Ignition of Main Flame

    Motor

      • 1/2HP; 3450 RPM; 120 volt, 1 ph, 60 Hz,
        6.4 Amps @120 volt AC
      • Optional Voltages:
        • 208/230v, 1 ph, 60 Hz
        • 208/230v, 3 ph, 60 Hz
        • 460v, 3 ph, 60 Hz
        • 575v, 3 ph, 60 Hz

    Beckett CG15 Gas Burner Cross-Reference

    Beckett Burner Beckett Firing Rates PowerFlame JR Burner PowerFlame C Burner Riello Gordon Piatt  Webster
    CG15.1 to CG15.4 800 to 1500 MBH JR50A CR1-G-15 G900 & RS28 R8.1-G JB1G-05

    The Beckett CG15 Gas Burner pairs with the following Commercial Products:

      • Commercial Oil/Gas Burner Motors
        • 21401U – Split Phase (1/2HP; 3450RPM; 120-208/320Vac)
        • 21638U – Split Phase (1/2HP; 3450RPM; 208/240-480Vac)
      • Commercial Oil Burner Pumps
        • Suntec: 21259U – B2TA-8851 N642R (2- phase; 16GPH@100psi)
      • Transformer & Electronic Igniters with base plate
        • 51214U – 12,000 volt Universal Transformer

    Commercial Burner Control Panels

    Our heavy duty 16-gauge steel control boxes can be mounted on any of our commercial CF & CG Series burners. They come in 2 convenient sizes (12″ x 12″, 16″ x 12″) according to your burner needs. We have a variety of light indicators, voltage configurations, and other options to chose from.

    Warranty

    Please note, all warranty claims must be initiated through an authorized Beckett supplier/distributor. Distribution policies will not allow Beckett to directly handle warranty claims with installers and/or consumers.

    Click to view Limited Warranty for Beckett Products.

    Click here to check if your part is still under warranty
