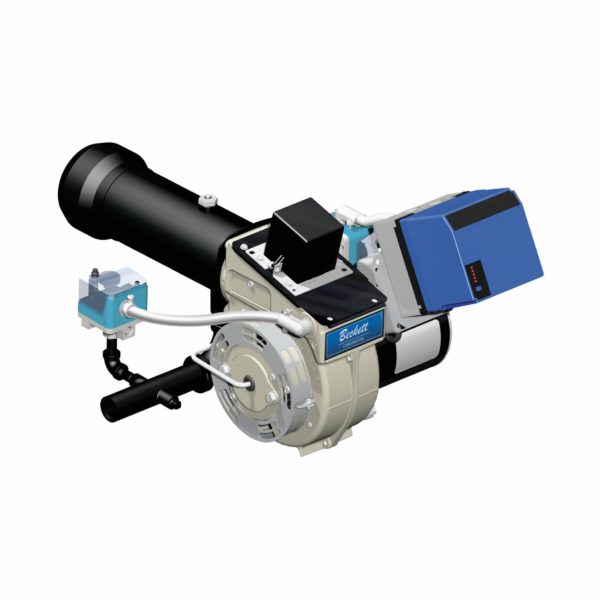

Details

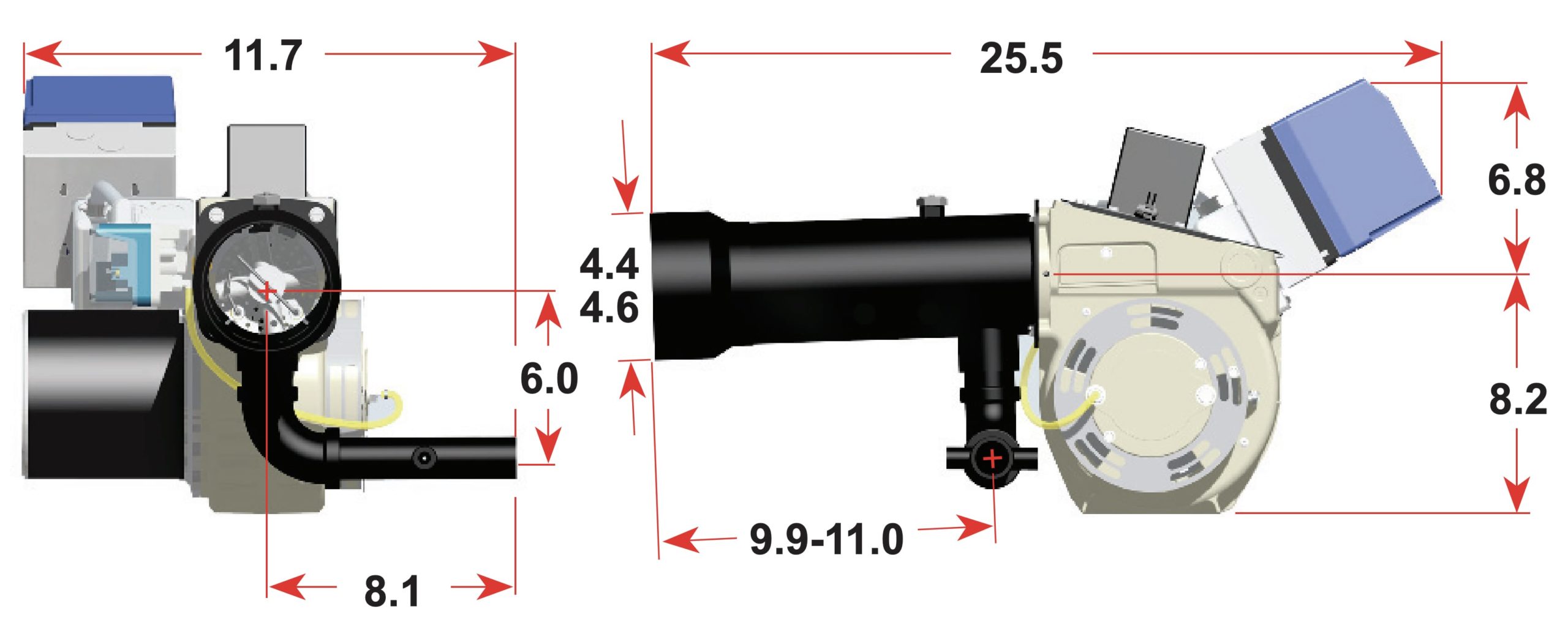

Dimensions
![Beckett-CG10-Gas-Burner-dimensions-diagram-min](https://www.beckettcorp.com/wp-content/uploads/2022/11/Beckett-CG10-Gas-Burner-dimensions-diagram-min-scaled.jpg)
Gas Gun Assembly
![Beckett-CG10-24-Gas-Burner-Gas-Gun-Assembly-min](https://www.beckettcorp.com/wp-content/uploads/2022/11/Beckett-CG10-24-Gas-Burner-Gas-Gun-Assembly-min-scaled.jpg)
Combustion Chamber Dimensions
![Beckett-CG15-Gas-Burner-Combustion-Chamber-Dimensions](https://www.beckettcorp.com/wp-content/uploads/2022/10/Beckett-CG15-Gas-Burner-Combustion-Chamber-Dimensions.jpg)
Minimum Combustion Chamber Dimensions (inches) | ||||
Input Firing Rate in MBH | Length ‘L’ | Width ‘W’ | Height “H” | Burner Head Centerline to floor ‘A’ |
300-400 | 18 | 12 | 12 | 6 |
400-600 | 22 | 14 | 14 | 7 |
600-900 | 26 | 16 | 16 | 8 |
900-1,200 | 30 | 18 | 18 | 9 |
Gas Train Assembly
(Typical Gas Train, other configurations are available)
![Beckett-CG10-24-Gas-Burner-Gas-Train-Assembly-diagram-min](https://www.beckettcorp.com/wp-content/uploads/2022/11/Beckett-CG10-24-Gas-Burner-Gas-Train-Assembly-diagram-min-scaled.jpg)
Specifications
Input Firing Range: 300 – 1200 MBH
Firing Mode: On-Off or On/Off with Low Fire Start
Fuel:
-
- Natural Gas: 0.6 Specific Gravity Typical
Gas Train Standard: UL listed/CSD-1 Configuration
Options: IRI and FM
Manifold Pressure: 1.0 to 4.6 inches W.C. typical
Gas Train: UL Standard 24V
Flame Safeguard: RM7895A Standard (Options available)
Flame Detection:
-
- Standard: Flame rod rectification
- Optional: Ultraviolet scanner
Air Proving Switch: Standard
Gas Pressure Switches: Standard high and low
Ignition: Direct spark main flame
Motor:
-
- Standard: 1/3 HP; 3450 RPM; 120 volt/60 hz,
single phase - Optional: 50 or 60 hz (see notice for 50
hz), 240 volt single phase
- Standard: 1/3 HP; 3450 RPM; 120 volt/60 hz,
Weight: 55 lbs.
Beckett CG10 Gas Burner Cross-Reference
Beckett Burner | Beckett Firing Rates | PowerFlame JR Burner | PowerFlame C Burner | Riello | Gordon Piatt | Webster |
CG10.1 to CG10.4 | 300 to 1000 MBH | JR15A | CR1-G-10 | G400 | N/A | N/A |
CG10.5 to CG10.6 | 1000 to 1200 MBH | JR30A | CR1-G-12 | G750 | R6.2-G | JB1G-03 |
The Beckett CG10 Gas Burner pairs with the following Commercial Products:
-
- Commercial Oil/Gas Burner Motors
- 21341U – Split Phase (1/3HP; 3450RPM; 120Vac)
- Commercial Oil Burner Pumps
- Suntec: 21188U – B2YA-8916 (2- phase; 7GPH@100psi)
- Suntect: 21369U – B2TA-8248 (2- phase; 8GPH@100psi)
- New York City Oil Pumps/DAR Kits: 51871U – B2TA-8248/DAR Mounted (single phase; 8GPH@100psi)
- Transformer & Electronic Igniters with base plate
- 51824U – Igniter with Beckett ‘S’ Base
- 51840U – Igniter with Carlin 200 Base
- Commercial Oil/Gas Burner Motors
Commercial Burner Control Panels
Our heavy duty 16-gauge steel control boxes can be mounted on any of our commercial CF & CG Series burners. They come in 2 convenient sizes (12″ x 12″, 16″ x 12″) according to your burner needs. We have a variety of light indicators, voltage configurations, and other options to chose from.
Downloads & Links
Manuals & Specs
CG10 Burner Manual
CG10 Spec Sheet
CG10 Parts List
References
Suggested Specification CG10
Commercial Gas Burner Product Sheet
OEM Set-Up Guide Commercial Gas Burners (Interactive)
OEM Set-Up Guide Commercial Gas Burners (PDF)
Propane Restrictor Conversion Kit
Commercial Burners Cross-Reference Guide
Quick Reference Guide – Adjusting the CG Series Burner
Commercial Selection Guide
Options
Warranty
Please note, all warranty claims must be initiated through an authorized Beckett supplier/distributor. Distribution policies will not allow Beckett to directly handle warranty claims with installers and/or consumers.
