The Beckett CF1400 oil burner’s design and technically advanced components meet increasing demand for improved performance in high-efficiency appliances in light commercial/industrial applications. Our CF1400 series utilize a proven combustion technology and our chassis coupled with a welded insertion make a perfect match to your application.
Certified for biodiesel blends up to 20% (D396 for B6-B20) to give consumers reliable performance while reducing the carbon footprint of their heating system.
Firing Rate (gph) | Minimum Dimensions | |||
Refractory Lined |
Wet-based Boilers | |||
A | L | A | L | |
0 to 5 | 7.0″ | 25.0″ | 7.0″ | 25.0″ |
5 to 10 | 8.0″ | 35.0″ | 8.0″ | 40.0″ |
Operation: Lo/Hi or Lo/Hi/Lo
Rate: 4.00 to 13.6 GPH
Fuels:
Motor:
Ignition Trans.: Continuous Duty, 120V/12,000V
Housing: Cast aluminum

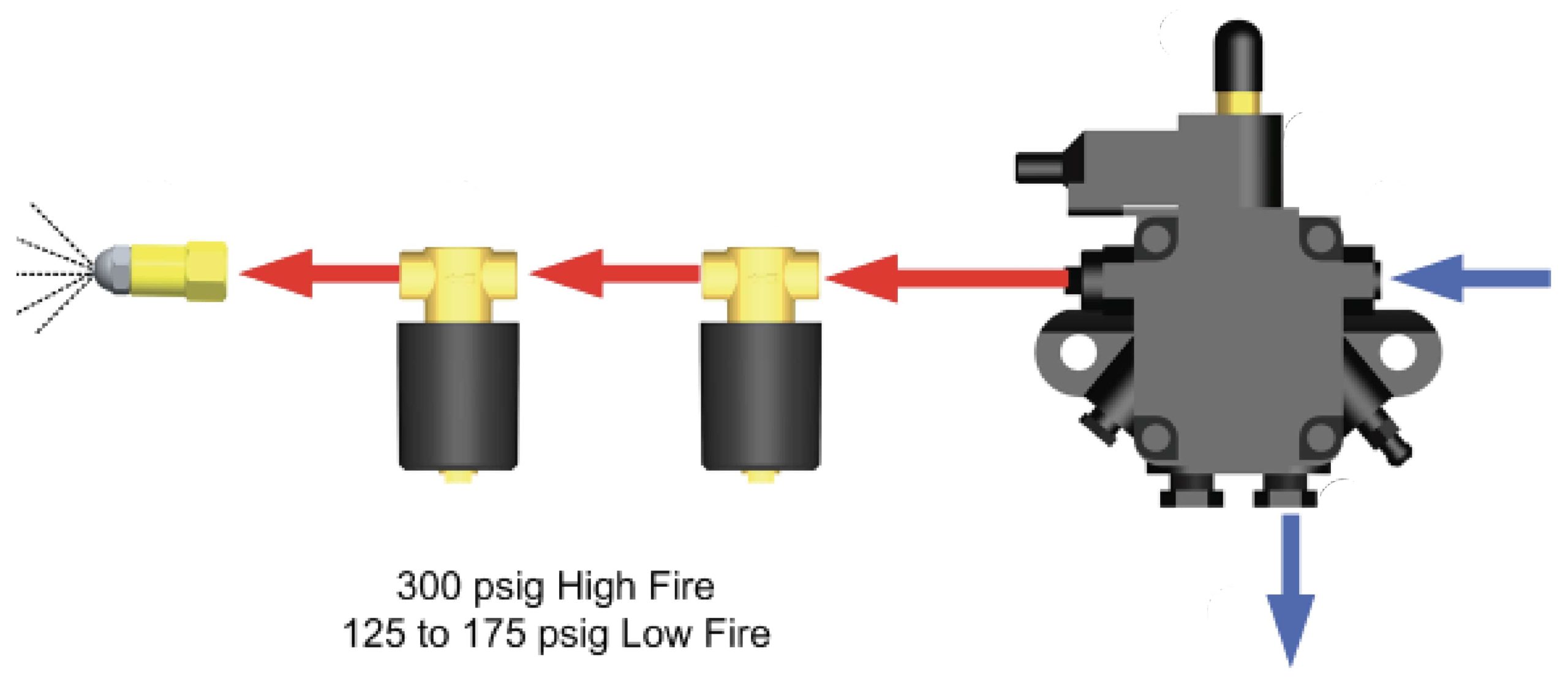

Fuel Unit: 100 to 300 psig
Oil Nozzle: 45˚ to 70˚ Solid
Burner Cross-Reference:
Commercial Burner Motors:
Commercial Burner Pumps:
Transformer & Electronic Igniters with base plate:
The burner control panel is available on all Beckett Commercial Oil and Gas burners and can be built to your specifications and functions. It is burner mounted on the CF1000, CF1400, CF2300, CF2500 and CF3500 oil burners, and is available as a remote mounted panel for the CF500 and CF800 oil burners. The control panel is burner mounted on the CG15, CG25 and CG50 gas burners, and is available as a remote mounted panel for the CG10 gas burner.
