AquaSmart® 24V Advanced Boiler Control | 7610B

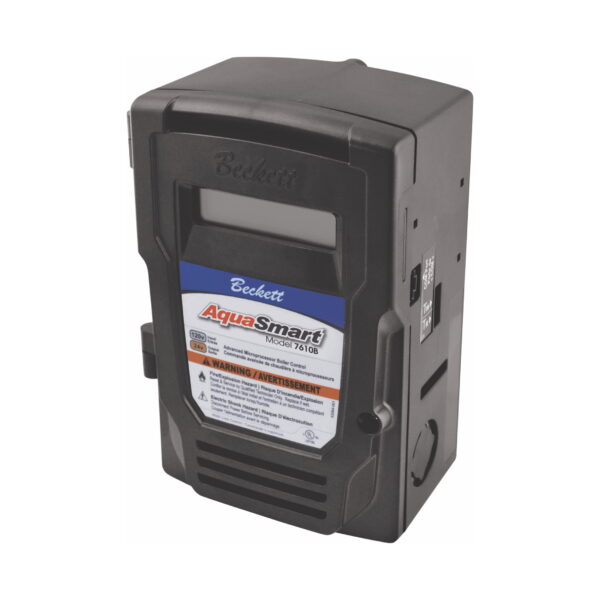

The Beckett AquaSmart 7610B control is an advanced microprocessor-based universal boiler control with a 24 VAC burner circuit for gas fired equipment. For use on residential and light commercial boiler systems, the 7610B is designed to save energy without sacrificing homeowner comfort.

All models include the option of Beckett HeatManager™ dynamic temperature reset that, when selected, provides up to 20% fuel consumption savings. The control includes a backlit LCD digital display with touch pad to easily program temperature limits, differentials, and other advanced options. The AquaSmart also has memory storage of system history for help with diagnostic troubleshooting.

The control is compatible with an AquaSmart® 7600TS Temperature Sensor or AquaSmart® 7600P Temperature Sensor with Water Level Detection for low-water cutoff (LWCO).

See also: AquaSmart® 120V Advanced Boiler Control | 7610A

Features and Benefits

  • Beckett HeatManager™ dynamic temperature reset
  • Energy saving through circulator-off delay
  • Expanded wiring box for easier installation
  • Priority override for domestic hot water
  • Freeze resistance can help prevent frozen pipes
  • Temperature only and LWCO sensors available
  • Cycle history diagnostic information
  • Backlit LCD screen with programming touch pad
  • Oil and gas offerings available
  • Cold-Start compatible
  • Easy to install Wireless Outdoor Temperature Reset (optional)

Wiring Diagram and Ratings

Electrical Ratings

  • Input Voltage: 120 Vac – 60 Hz
  • Input Current: 0.1 A + B1 + C1 + ZC
  • MAX Input Current: 20A (Reduce to 15A if optional power switch is used)
  • 24 Vac thermostat anticipator current: 0.1 Amp
  • Burner Current Rating (B1): 1.25 A at 24 Vac; 30 VA (total load)
  • Circulator Current Rating (C1): 7.4 A at 120 Vac FLA; 44.4 A inrush LRA
  • Zone Control Current Rating (ZC): 7.4 A at 120 Vac FLA; 44.4 A inrush LRA

Temperature Ranges and Differentials

  • High Limit Setting Range: 100 to 220°F (37 to 104°C)
  • High Limit Differential Range: 5 to 45°F (2 to 25°C)
  • Low Limit Setting Range: 100 to 205°F (37 to 96°C)
  • Low Limit Differential Range: 10 to 45°F (5 to 25°C)
  • Factory Range Stops available—consult factory

Environmental Ratings

  • Storage Temperature: -40 to +150 °F (-40 to +65 °C)
  • Operating Temperature: -4 to +150 °F (-20 to +65 °C)
  • Relative Humidity: 5 to 85% RH, non-condensing and non-crystallizing

Available Part Numbers

Item No. Description
7610A0001U AquaSmart Boiler Temperature Control – 120Vac – Oil with Temperature ONLY Sensor (120 Vac burner circuit)
7610B0001U AquaSmart Boiler Temperature Control – 120Vac – Gas with Temperature ONLY Sensor (24 Vac burner circuit)
7610A000LU AquaSmart Boiler Temperature Control – 120Vac – Oil LESS Sensor (120 Vac burner circuit)
7610B000LU AquaSmart Boiler Temperature Control – 120Vac – Gas LESS Sensor (24 Vac burner circuit)
7600TSU Replacement Temperature Only Sensor Unit Pack
7600P01U Replacement Temperature/LWCO Sensor Unit Pack
7622TW01U Brass Immersion Well – 2-3/16” Insulation Depth and 7/8” Insertion Depth, 3/4” NPT Thread
7622TW02U Brass Immersion Well – 2-3/16” Insulation Depth and 1-5/8” Insertion Depth, 3/4” NPT Thread
7622TW03U Brass Immersion Well – 3-1/2” Insulation Depth and 1-5/8” Insertion Depth, 3/4” NPT Thread
7622TW04U Brass Immersion Well – 4-3/4” Insulation Depth and 1-5/8” Insertion Depth, 3/4” NPT Thread
7600RMU 48” AquaSmart Remote Mount Kit
7600WTMU Wireless Temperature Module for Outdoor Reset
AquaSmart® Wireless Outdoor Temperature Reset Module | 7600WTM

AquaSmart® Wireless Outdoor Temperature Reset Module | 7600WTM

The Beckett AquaSmart® Wireless Temperature Module (WTM) is a 2-part accessory for the AquaSmart 7610A 120V Advanced Boiler Control or AquaSmart 7610B 24V Advanced Boiler Control. It adds outdoor reset capability to the AquaSmart control by overriding the control’s built-in HeatManager algorithm when installed. With a maximum 200-foot range, the wireless feature makes installation easy by eliminating mounting location limitations for the outdoor sensor and the need to run wires outside.
