Details

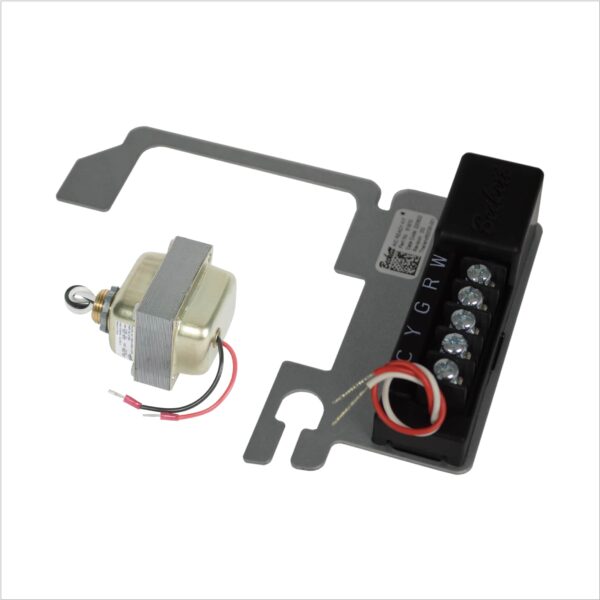

Homeowners everywhere are using their Smartphones to connect to and control their HVAC systems. The totally redesigned Beckett A/C Ready Kit makes it easy to add an internet connected thermostat to existing oil heating equipment. The A/C Ready Kit adds the “C” terminal needed to power connected thermostats and includes a 40 VA transformer to make sure you have the energy needed to power the connected thermostat of your choice.
Features & Benefits
- Includes the “C” terminal needed to power internet connected thermostats
- Mounts under most common primary controls
- Can be used with oil furnaces or oil boilers
- Totally redesigned circuit with DC relays to prevent buzzing and chattering
Replacement Parts
Part Number | Description |
7520U (Includes GeniSys 7505 & 51950U) | GeniSys 7505 Replacement |
51950U (Includes 51970U & 21905U) | AC Ready Kit |
51970U | Terminal Base only |
21905U | Transformer only |

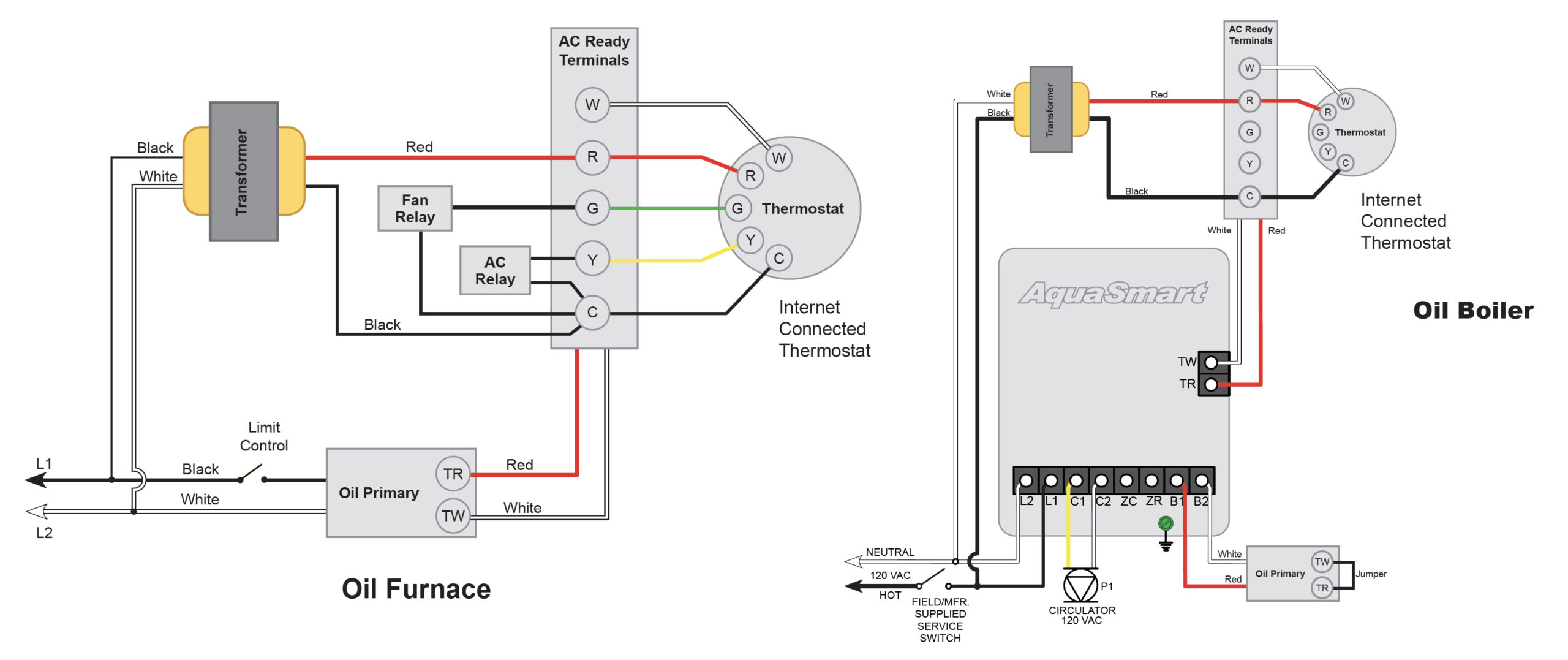

A/C Ready Kit Wiring
Downloads & Links
Warnings (prop65)
Warranty
Please note, all warranty claims must be initiated through an authorized Beckett supplier/distributor. Distribution policies will not allow Beckett to directly handle warranty claims with installers and/or consumers.
